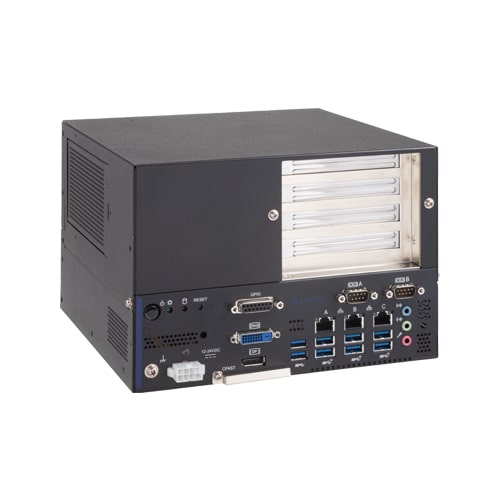

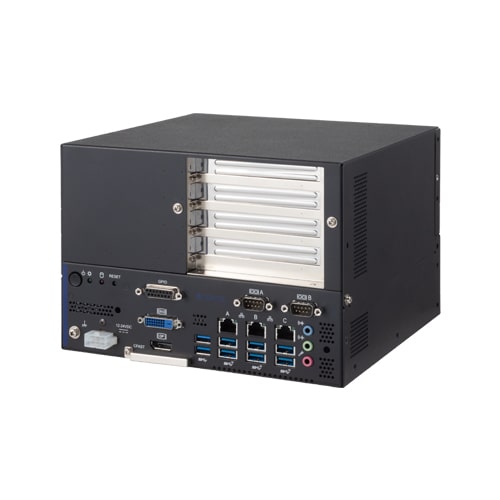

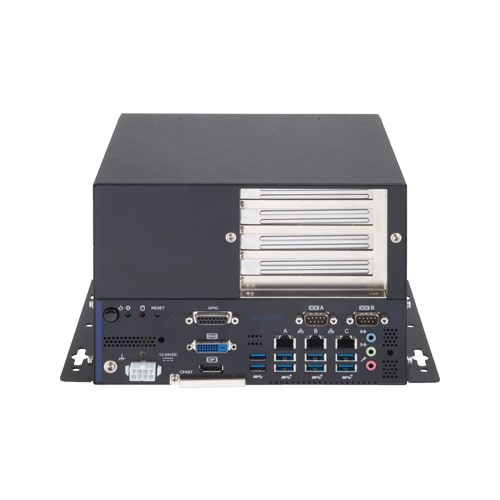

EPC-4000P4 Embedded-PC EPC-4000 series / Core i7-8700T (Coffee Lake + Q370) / 4 x PCIe(x4) Expansion Slots/ DC Power Supply

  • NEW
  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • Support for the Coffee Lake-S Intel Core processor series
  • Freely expandable peripherals and a rich variety of interfaces
  • Highly noise-resistant design with separated FG and SG
  • PCI Express x4 high speed expansion slot
  • "Power failure protection system" features power-off without OS shutdown
  • Custom BIOS supporting real-time OS
  • *
    For details about an extended warranty, please contact us.

Similar models

Overview / Features

This product is a high-performance embedded personal computer equipped with the 8th generation Intel® Core™ processor series. Embedded type is adopted for CPU and chipset. You can use it with confidence by using parts that can be stably supplied. In addition, Contec's unique functions such as "Power Failure Protection", "CONTEC Fast Boot", "Secure Boot USB Key", "Disk Copy", "Self-diagnosis" are available.

Usage Examples

Semiconductor manufacturing machines

Machine tool (CNC)

Robot controller

Visual inspection system

  • Support for the Coffee Lake-S Intel Core processor series
    • Available with a power-saving, high-performance 8th-generation Core processor for advanced computation and drawing performance while minimizing power consumption. Reliable supply is ensured by the adoption of embedded CPUs. In addition, Moreover, CPU built-in high definition graphic chip Intel HD Graphics 630 makes it possible to play smooth full-HD image to dual displays of DVI-D and DisplayPort.
  • Freely expandable peripherals and a rich variety of interfaces
    • Equipped with expansion interfaces that include DVI-D, DisplayPort, 1000BASE-T × 3, USB 3.2 Gen 2 (USB 3.1) × 6, USB 3.2 Gen 1 (USB 3.0) × 2, serial (RS-232C) × 1, serial (RS-232C/RS-422A/RS-485) × 1, audio, and GPIO (isolated, Input × 4, Output × 4). This makes it possible to use this product in a variety of situations.
  • Highly noise-resistant design with separated FG and SG
    • Induction noise is the great enemy of electronic devices, and is produced by motors and other rotating devices, as well as by high-power actuators. Separating the FG (frame ground) and SG (signal ground) prevents malfunctions caused by induction noise from the FG.

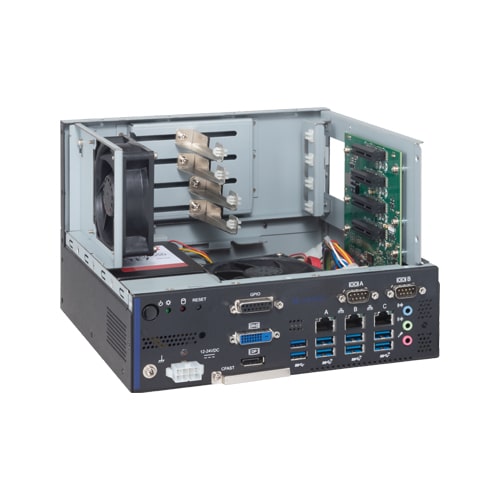

  • PCI Express x4 high speed expansion slot
    • For P4 model with 4 lanes and 4 slots of PCIe with a built-in low-latency Broadcom PCIe switch is available. you can select expansion cards without compromise, such as image processing, camera input, FPGA, NIC, etc.
  • "Power failure protection system" features power-off without OS shutdown
    • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows 10 IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
  • Custom BIOS supporting real-time OS
    • The CPU cores/threads and onboard devices can be flexibly customized to match the OS. System availability is improved by original functions such as storage backup/restore and self-diagnosis functions.
