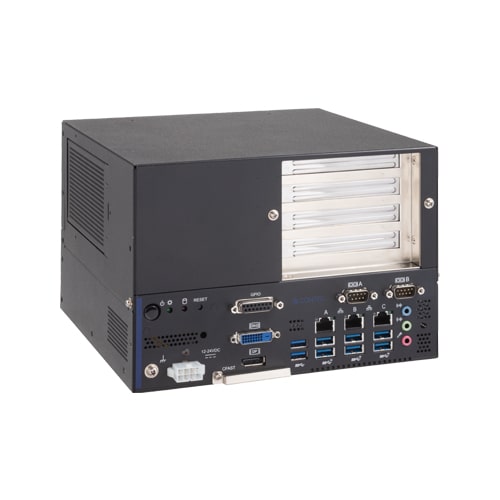

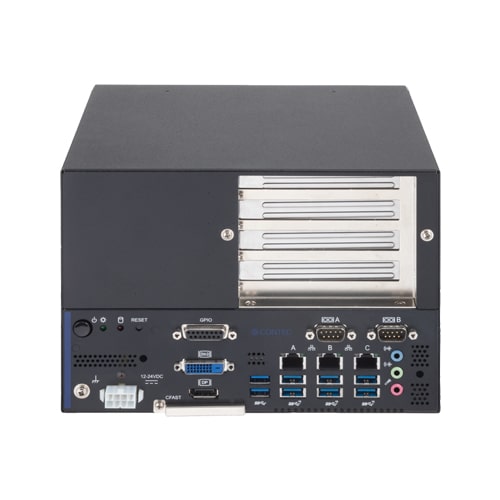

EPC-4000P4 Embedded-PC EPC-4000 series / Core i7-8700T (Coffee Lake + Q370) / 4 x PCIe(x4) Expansion Slots/ DC Power Supply

  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Support for the Coffee Lake-S Intel Core processor series
  • Freely expandable peripherals and a rich variety of interfaces
  • Highly noise-resistant design with separated FG and SG
  • PCI Express x4 high speed expansion slot
  • "Power failure protection system" features power-off without OS shutdown
  • Custom BIOS supporting real-time OS
  • *
    For details about an extended warranty, please contact us.

Similar models

Ordering Information

Ordering Information

Model Description Certification
EPC-4000P4-DC39000 Base model with Intel Core i7-8700T(Memory 16GB, without OS, without Storage), 4 expansion slots
  • CE marking
  • FCC compliant
  • UL
  • VCCI
EPC-4000P4-DC3941E With Intel Core i7-8700T (Memory 16GB,Windows 10 IoT Enterprise 2019 LTSC 64bit (English/Chinese/Japanese/Korea), 2.5 inch SSD(TLC) 256GB), 4 expansion slots
  • CCC compliant
  • CE marking
  • FCC compliant
  • UL
  • VCCI
EPC-4000P4-DC28000 Base model with Intel Core i5-8500T (Memory 8GB, without OS, without Storage) 4 expansion slots
  • CE marking
  • FCC compliant
  • UL
  • VCCI
EPC-4000P4-DC2841E With Intel Core i5-8500T (Memory 8GB, Windows 10 IoT Enterprise 2019 LTSC 64bit (English/Chinese/Japanese/Korea), 2.5 inch SSD(TLC) 256GB), 4 expansion slots
  • CCC compliant
  • CE marking
  • FCC compliant
  • UL
  • VCCI

Options

Storage

Item Item Name
CFS-16GB-A 1.0-inch SATA CFast Card (SLC)
CFS-16GBQ-A 1.0-inch 16GB SATA CFast Card (Q-MLC)
CFS-32GBM-A 1.0-inch 32GB SATA CFast Card (MLC)
CFS-32GBQ-B 1.0-inch 32GB SATA CFast Card (Q-MLC)　(Wide temperature range spec)
CFS-A 1.0-inch SATA CFast Card (SLC)

Other Accessories

Item Item Name

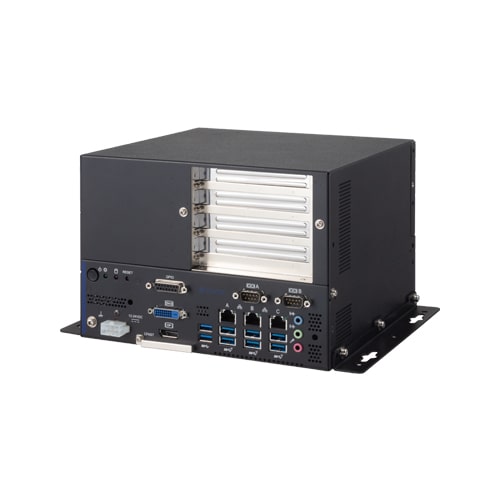

EPC-P4-BKT Attachment fittings for EPC-4000P4(designed to fit to the sides)
