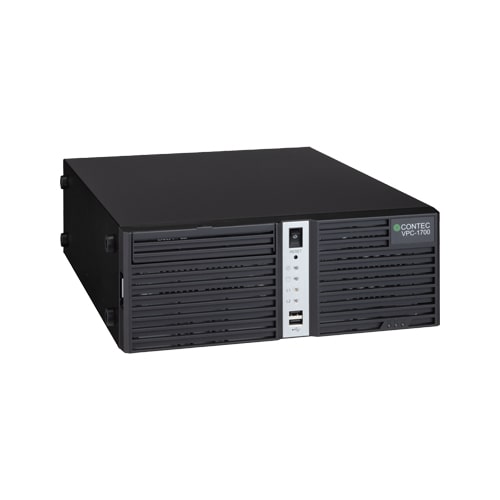

VPC-1700-G Industrial Computer VPC-1700-G - Slim Tower PC / Intel 8th Gen. (Coffee Lake + Q370) / 1x PCIe(x1), 2x PCI / 3x PCI

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Intel® Core™ processor series Coffee Lake Supported
  • High-performance graphics with CPU embedded type
  • Mirroring (RAID1) supported
  • Removable storage adopted
  • Expand your peripherals with various interfaces
  • The selection of expansion slots from 1x PCI-Express(x1), 2x PCI or 3x PCI
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
VPC-1700-G Slim Tower PC / Intel 8th Gen. (Coffee Lake + Q370) / 1x PCIe(x1), 2x PCI / 3x PCI
  • CE marking
  • FCC compliant
  • VCCI

BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation *1.

CPU
  • Core i7-8700T
  • Core i5-8500T
  • Celeron G4900T
Memory
  • 8GB
  • 16GB
  • 32GB
Storage 1
  • 3.5 inch HDD 2TB / Removable
  • 3.5 inch HDD 4TB / Removable
  • 2.5 inch SSD 256GB / Removable
  • None
Storage 2 *2
  • 3.5 inch HDD 2TB / Removable
  • 3.5 inch HDD 4TB / Removable
  • 2.5 inch SSD 256GB / Removable
  • None
Optical Drive / Hard Disk
  • DVD super multi drive
  • 2.5 inch SSD 256GB
  • None
RAID(Mirroring)
  • Software RAID
  • Hardware RAID
  • None
OS
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit (English/Chinese/Japanese/Korean)
  • None
Expansion Slots
  • 1x PCI Express(x1), 2x PCI
  • 3x PCI
  • None

*1 There are combinations that can not be configured. Please inquire in detail.
*2 If needs to configure the RAID function, selects the same device for Storage 2 as of Storage 1



Options

Storage

Item Item Name
HDD-2TS-3 3.5-inch 2TB SATA Hard Disk Drive
HDD-2TS-3R 3.5-inch 2TB SATA Hard Disk Drive, RAID
HDD-4TS-3 3.5-inch 4TB SATA Hard Disk Drive
HDD-4TS-3R 3.5-inch 4TB SATA Hard Disk Drive, RAID
SSD-256GS-2T 2.5-inch 256GB SATA Solid State Drive
SSD-256GS-2TR 2.5-inch 256GB SATA Solid State Drive, RAID
