Motion Control Card (for 100 pin 0.8mm pitch connector) Accessory Cables

Wired with terminal block

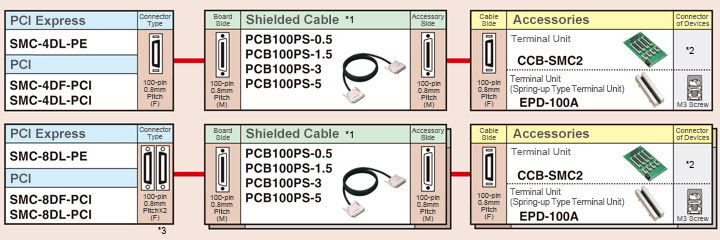

Motion Control Card (for 100 pin 0.8mm pitch connector) Accessory Cables

*1:
Please choose cables with the wiring distance taken into account.
*2:
100-pin 0.8 mm pitch connector x1 → 37-pin D-SUB x4, 9-pin D-SUB x4
*3:
Each connector needs cables and accessories.

Shielded cables

Accessories - Dedicated motion control Card terminal blocks

CCB-SMC2 conversion terminal for SMC Series

Connects up to 4 motor drive units.
We recommend use of dedicated terminal blocks to enable easy wiring with motor driver units. D-SUB connector is introduced for easy handling, capable of wiring separate limit sensors on each axis.
General-purpose crimp relay terminal block EPD-100A

M3 screw: connects up to 100 signal lines.
We recommend this terminal block for concentrated wiring of the motor driver unit and limit sensor. Applies screw up type terminal block to prevent disconnection of terminal screw.

Motion Control Card Connectable with 100 pin 0.8mm Pitch Connector

PCI Express

PCI

Accessories compatibility
