New Product - Scalable EPC-3000 Series Embedded Computer with 6th Generation Intel® Core™ Processor (Skylake)

  • Product & Service

Africa、Asia、Europe、Japan、Middle East、North America、Oceania、Latin America

CONTEC Co., Ltd. has developed a new embedded PC for edge computing that is both highly scalable and equipped with 6th generation Intel® Core™ processor. It has started receiving orders for the EPC-3000 Series from July 31, 2018.

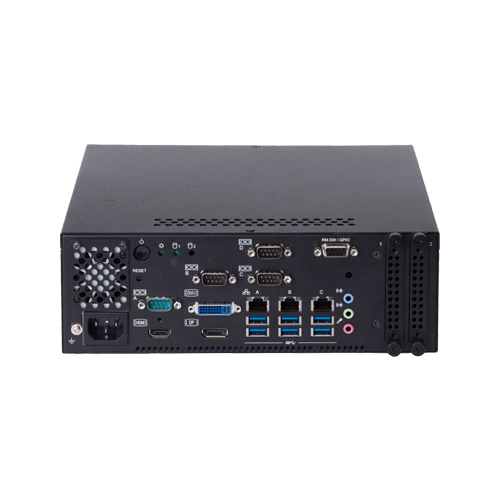

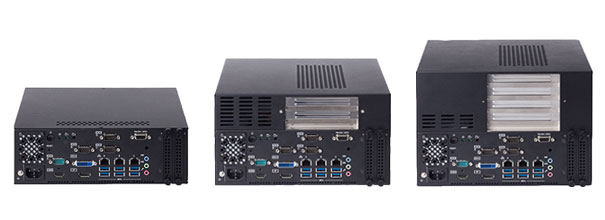

From the left: EPC-3010(base model),EPC-3010P2(2 slots),EPC-3010P4(4 slots)

Main features

  • Equipped with Powerful 6th Gen. Intel® Core™ processor for edge computing

    6th Gen. Intel® Core™ processor (Code name: Skylake). Powerful multi core CPU makes it possible to achieve real-time, high-speed processing and advanced graphics processing.

  • 3 independent Gigabit LAN ports to connect different network segments

    3 Gigabit LAN ports can be utilized for field bus network in factory, controllers and upper Information system network that are all different network segments and are ideal feature for IoT Gateway application

  • Selectable expansion slots model that can house PCI-Express (x8) or PCI boards

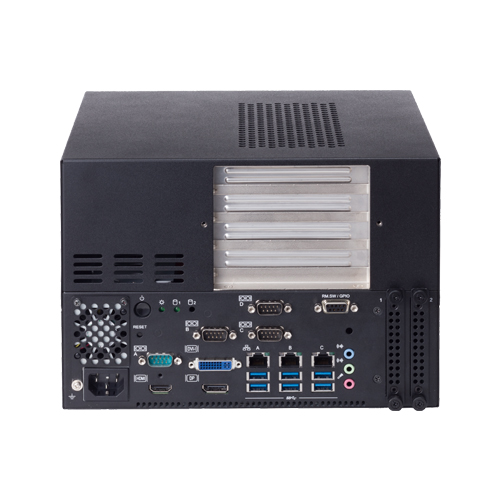

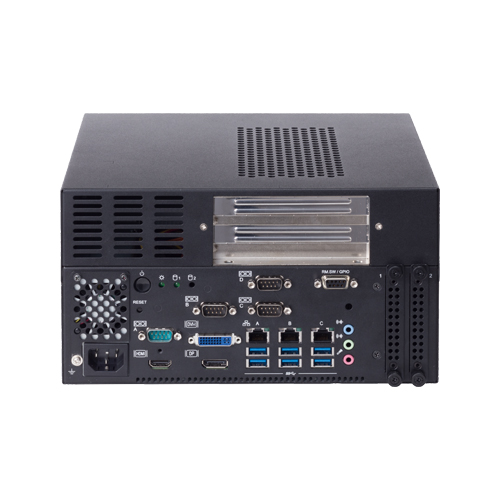

    The EPC-3010P2 is equipped with two PCI bus slots. The EPC-3010P4 is equipped with one PCI-Express (×8) and three PCI bus slots. Usable board dimension is Max. is 176mm (L) × 110mm (H).

  • Built-in GPU supports 4K resolution and output to three screens

    Core™ i7/i5 models support Intel® HD Graphics 530 and Celeron model support Intel® HD Graphics 510. It can play 4K high resolution motion picture smoothly and also supports three independent screens by DVI-I, DisplayPort and HDMI.

  • Reduce downtime for maintenance time by removable storage

    The product adopts front accessible 2.5-inch SATA storage, and also supports software RAID function such as mirroring to enhance stability of the system.

  • The identical dimensions enable easy replacement with the EPC-2010 series

    In order to replace the system with ease, this product has the same physical dimensions and fixing holes of mounting bracket.

Ordering Info.

This series is BTO (Build-to Order) type PC that CPU/Memory/Storage/OS can be selected when ordering
Please inform the dealer about the BTO menu and request a quotation. There are combinations that cannot be configured. Please inquire in detail.

EPC-3010 EPC-3010P2 EPC-3010P4
Base Model EPC-3010 EPC-3010P2A EPC-3010P4
Expansion None PCI×2 PCI Express(x8)×1, PCI×3
CPU (Selection) Celeron G3900TE 2.3GHz / Core i5-6500TE 3.3GHz / Core i7-6700TE 3.4GHz
Memory (Selection) 8GB (8GBx1) DDR4 SDRAM / 16GB (8GBx2) DDR4 SDRAM
Storage (Selection) None / 500GB HDD / 500GB HDD×2 / 500GB HDD×2 (Mirroring) / 256GB SSD / 256GB SSD×2 / 256GB SSD×2 (Mirroring)
OS (Selection) None / Windows 10 IoT Enterprise 2016 LTSB 64-bit (JPN, ENG, CHN, KOR) / Windows 7 Professional SP1 for Embedded Systems 32-bit (JPN, ENG) / Windows 7 Professional SP1 for Embedded Systems 64-bit (JPN, ENG)
