  2. New Thin type PT-V10 Series Panel Computers

New Product Release: New Thin type PT-V10 Series Panel Computers with Intel® Atom® Apollo Lake CPU - Fanless Industrial Computers with Integrated PCAP Touchscreen

  • Product & Service

Africa、Asia、Europe、Japan、Middle East、North America、Oceania、Latin America

Contec presents the newest models, PT-V10WB-200、PT-V10WB-200R Series Panel Computer lineup of fanless industrial computers with built-in touchscreens and an Intel® Quad-core Atom CPU (Apollo Lake) with Windows 10 IoT Enterprise support (in four languages). These two new models were released for sale on November 10, 2020.

PT-V10WB-200

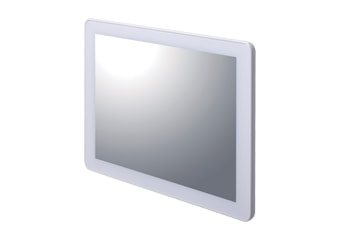

PT-V10WB-200_front Front

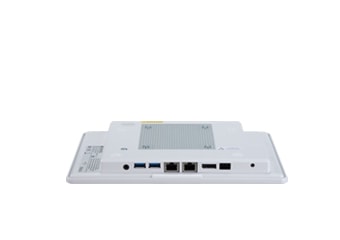

PT-V10WB-200_back Bottom

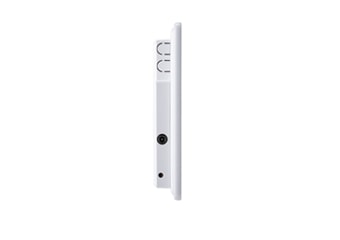

PT-V10WB-200_side Side

Model Wireless LAN・
Bluetooth		 LCD size /
Touch panel		 CPU / Memory /
Storage		 OS
PT-V10WB-200-J104M05 None 10.1” WXGA (1280×800) /
PCAP		 Atom x5-E3940 1.6GHz Quad-core / 8GB ECC / M.2 64GB SSD MLC *1 None
PT-V10WB-200-J104M05W19 W10IoTE *2
PT-V10WB-200R-J104M05 Built-in None
PT-V10WB-200R-J104M05W19 W10IoTE *2
  • *1
    It is already built into the product. The capacity that can be recognized from OS might be displayed fewer than an actual value.
  • *2
    W10IoTE : Windows 10 IoT Enterprise 2019 LTSC 64-bit (English/Chinese/Japanese/Korean)

The PT-V10 Series feature Intel Atom E3940 Quad-core CPUs and a fanless, spindleless construction with integrated touch panel displays for VESA-mounted industrial applications.

Widespread use of tablets and notebook PCs in recent years has brought about an increased use of touch panel-equipped devices in industrial and business equipment fields (POS devices, ordering devices, equipment operation terminals, etc.).

The new product achieves the same smooth touch operation as a tablet while maintaining the long-term stable supply and secure design that are the features of industrial PCs. Thin panel computer, PT-V10 series boast reduced depth and weight in addition to other improvements in a space-saving design for use in various industrial applications, including Commercial equipment controller, HMI terminal, Printing machine, Production machine, Pharmacy equipment and Reception terminal.

Main Features

  • Adopting PCAP multi-touch screen enabling smooth touch operation

    The PT-V10 Series uses a projected capacitive (PCAP) touch screen that enables 10-point multi-touch operations to create a beautiful display with smooth operability. The panel offers excellent scratch resistance and clarity.

  • VESA standard support

    Conforming to the VESA standard (75×75), the product screen angle can be flexibly set on the various types of arms or stands.

    • *
      The PT-V10 series do not include panel mounting holes. Only VESA mounting is possible.
  • Wireless communication with various devices by Wireless LAN and Bluetooth

    Wireless LAN model (PT-V10WB-200R) in compliant with Bluetooth 4.2 and IEEE 802.11ac/a/b/g/n is ready. It is ideal solution for IoT gateway and edge computing, as it can be connected with various network devices.

  • The compact design features flexibility in installation

    With minimum interfaces such as USB3.2 Gen1(USB3.0)×3, LAN×2, Audio×1, DisplayPort×1, the compact size PC, (259mm(W) x 169mm(H) x 26mm(D)), features flexibility in installation.

  • Fanless design that reduces maintenance and inspection work

    This product's spindle-less design eliminates CPU fan, and relieves the concern about dust or foreign matter to get into the product. The using parts that degrade over time is minimized to facilitate maintenance.

  • Contributing to running cost reduction and energy efficiency

    Adopting the low-power platform of Intel Atom processor E3940 achieves lower power consumption while still ensuring sufficient performance.
