PC expansion cards for the construction of measurement control and communication systems. Large selection of USB, PCI Express, and PCI cards, as well as full lineup of measurement software and program development tools.

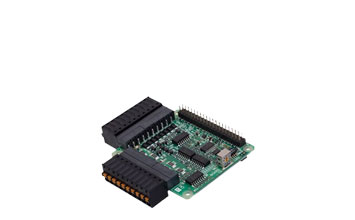

CPI Series HAT Size card with Raspberry Pi support for Ease of Use in FA and Measurement Control Applications.

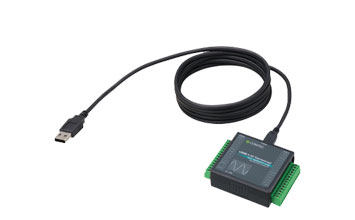

USB port connection type modules. Ideal for laptops. Full lineup of DIN-rail mount types. Large selection of DIN rail mount type is also available.

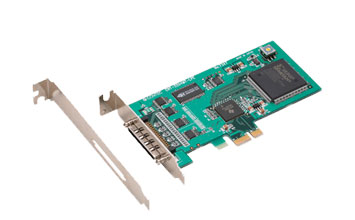

Interface cards for desktop PC with PCI Express standard. Large selection of low profile type is available as well.

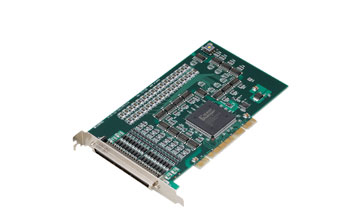

Interface boards for desktop PC with PCI standard. Large selection of low profile type is available as well.
Conectable with an equipment using LAN port.

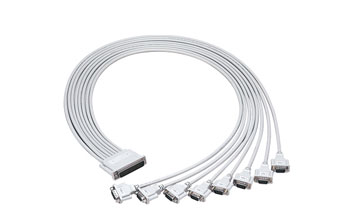

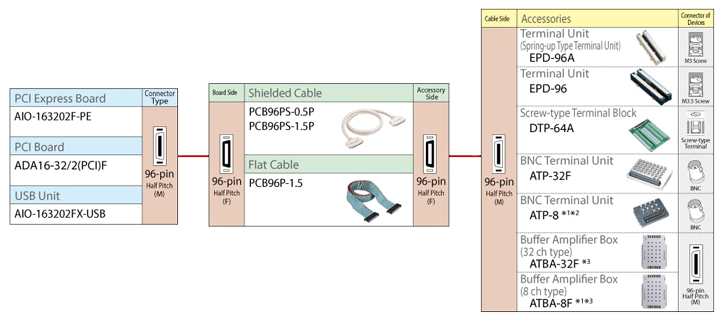

Shielded cables, flat cables, conversion connectors and branch cables.

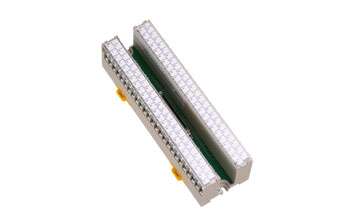

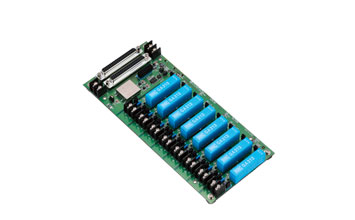

BNC and screw-fastened relay terminal blocks, function expansion modules, and I/O test tools.
Simultaneous sample and hold, buffer amplifier, I/O test tool, etc.

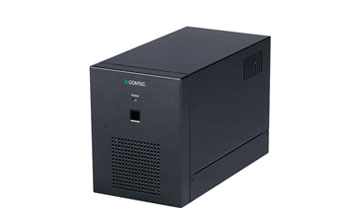

Installation of extra PCI Express and PCI expansion slots to desktop and laptop PCs.
Multifunction device is integrated I/O functions such as analog I/O, digital I/O, counters.
Voltage and current signal I/O (A/D conversion and D/A conversion). Measurement, analysis, and actuator control of temperature, vibration, displacement, load, etc.
Photocoupler isolation/TTL input and output, transistor and relay contact output. ON/OFF monitoring control, switch, LED, 7-segment display, and microcomputer communication.
Encoders, linear gauges, and magnescale position detectors. Motor feedback control. Integrating count of production-related pulses such as flow rate and electric power.
Pulse motor and servo motor control. Multi-axis robot, conveyor, rotary table, and XY table positioning control.
RS-232C/RS-422/RS-485 communication and remote control of equipment for commercial use such as barcode readers, measuring devices, UPS, visual/audio.
GPIB (IEEE 488) communication and remote control with instruments such as multimeters, analyzers, function generators, and oscilloscopes.
Contec offers various types of software for data acquisition applications such as the original data loggers that can be used immediately without any programming, electronic measurement and analysis applications, middleware, MATLAB and LabVIEW drivers.
Free download, but full-scale. Graphical display of measurement data, zoomed observation, file saving, and dynamic transfer of data to Excel (spreadsheet software).
Windows PC becomes a logic analyzer / pulse generator ! Sampling / generating with high-speed digital I / O dedicated software.
PC-HELPER runs on LabVIEW. Even easier to use with polymorphic VI.
Using Contec's GPIB communication cards with LabVIEW. It can also be used by other program language including Microsoft Visual Basic.
Functions are available with interfaces unified by MATLAB Data Acquisition Toolbox.

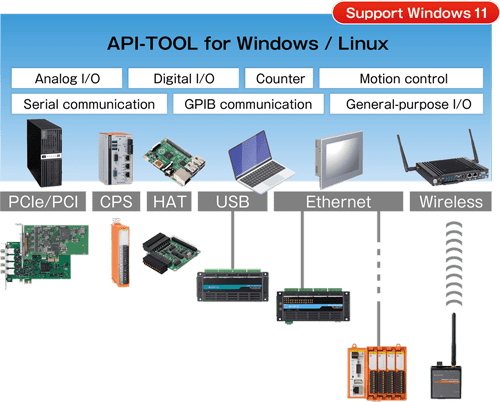

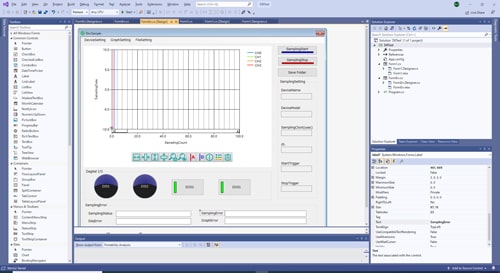

Device commands provided by Windows API. Visual Basic and Visual C/C++ sample programs, a useful diagnostic program, and online help are included.
Commands provided in the form of modular device drivers and shared libraries. gcc (Kylix, in part) sample programs and easy-to-use online help included.
