New Product Release: Whiskey Lake-U 3.5” Embedded System Board GMB-L3WHL200 with Intel 8th Generation Core i3-8145UE Processor

  • Product & Service

Africa、Asia、Europe、Middle East、North America、Oceania、Latin America

 Contec has developed new 3.5-inch form factor Industrial Motherboard (Model: GMB-L3WHL200) with Windows 10 IoT Enterprise 2019 LTSC 64-bit (English/Chinese/Japanese/Korean) supported. This new product, with Intel 8th generation embedded Core i3-8145UE processors adopted, is released for sale on February 16, 2021.

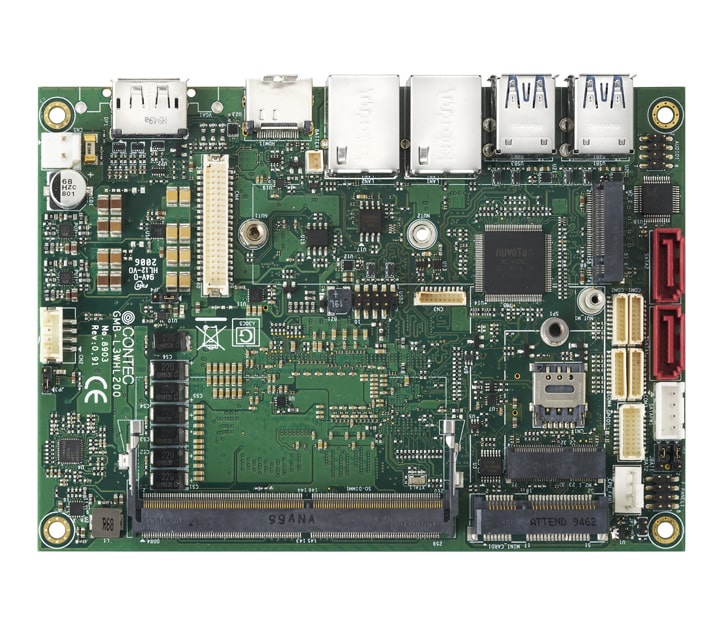

Top view

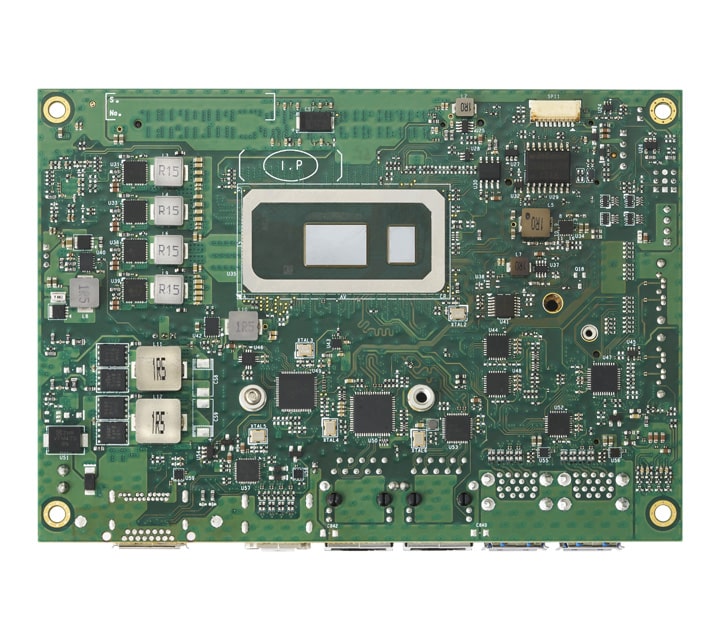

Back view

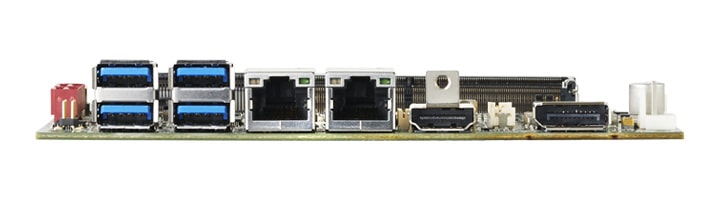

Rear I/O sideview

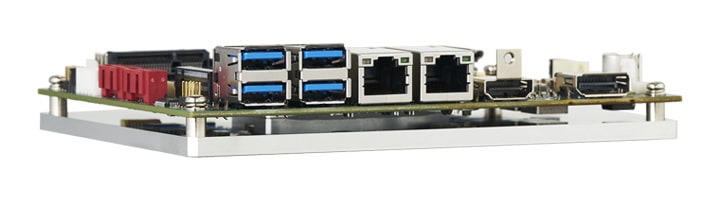

Angle view and heatspread

 The industrial-grade GMB-L3WHL200, with size of 146mm x 102mm, has high computing power, triple-display capability, and various expansion slots make it well-suited for factory automation, intelligent transportation, digital signage, self-service kiosks, and medical applications.

 The GMB-L3WHL200 supports one 260-pin DDR4-2400 SO-DIMM socket for up to 16GB of memory. To meet customers’ various needs, it also equipped with one Full-sized Mini PCIe slot, M.2 M key with mSATA support, and M.2 E key with SIM socket. In addition, it utilizes Intel UHD graphics 620 to provide and feature triple-display capability through HDMI, DisplayPort and LVDS interfaces which enable multi-display in a limited space.

 Moreover, it has one RS-232/422A/485 port, three RS-232 ports, two gigabit ethernet ports with Intel i219LM and i210AT controllers, four USB3.2 Gen.2 ports, two USB2.0 ports, audio interface(Mic-in and Line-out), one 16-bit GPIO port, one HDMI, one DisplayPort, and one LVDS port. GMB-L3WHL200 can operates in temperature range from 0 to 60°C and has 12 to 24VDC power supply input.

Main Features

  • Intel 8th Generation Core i3-8145UE Processor (whiskey Lake-U)
  • Support 1 x DDR4-2400 Non-ECC SO-DIMM, up to 16 GB
  • Equip 1 x Full-sized Mini PCIe, 1 x M.2 2280 Key M, and 1 x M.2 2230 Key E
  • Support Triple-display, HDMI, DisplayPort, and LVDS
