Integration of global standard technologies

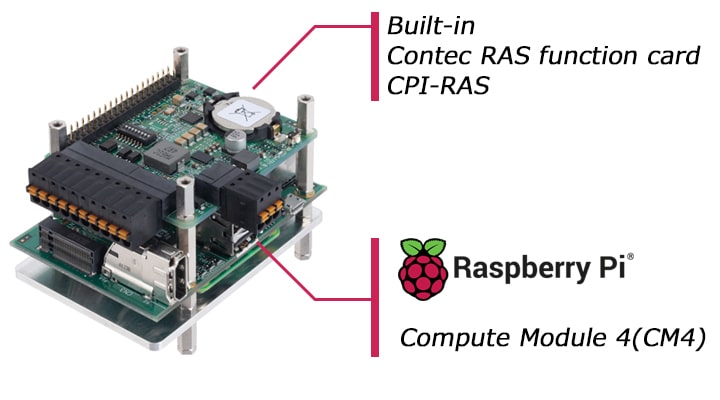

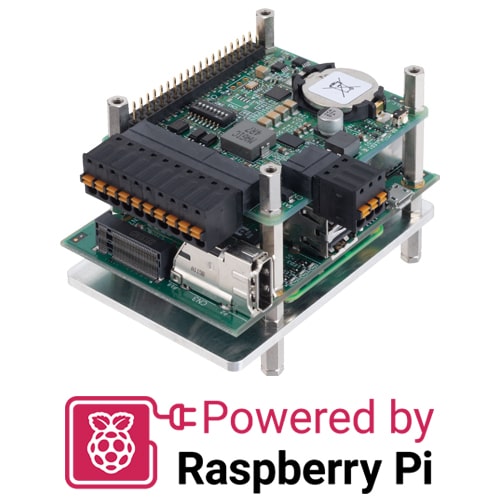

Raspberry Pi boasts a cumulative shipment of more than 60 million units. It uses Compute Module 4 (CM4), which is an industrial embedded module that makes the core part of the Raspberry Pi. It is highly compatible with Raspberry Pi. Ensures reliability and environmental resistance, which are indispensable for industrial control. It is designed with a wide temperature range of -20 ~ 60° (airflow 0.7ms) at an ambient temperature. Built-in our well-established RTC/RAS board for Raspberry Pi (CPI-RAS). Watchdog Timer (WDT) and Clock (RTC) functions are provided. It is equipped with a high-power, high-efficiency power supply circuit and a noise filter that filters out extraneous noise, generating a clean 5VDC and feeding it to the internal circuitry.

More than 400 OEMs around the world have adopted the software PLC "CODESYS" and shipped more than 1 million units annually. It can be programmed in the PLC language according to the international standard IEC 61131-3. (* CPI-PS10CM4 only) It enables the accumulation of software assets in a common language that is independent of vendors, and increases the reusability of programs. It is also compatible with IEC 61131-3 3rd edition and can be programmed in an object-oriented manner.

Quad-core Cortex-A72 (ARMv8) 64-bit SoC @ 1.6GHz, DDR4 2GB high-speed memory, 16GB eMMC. Powerful PC specs take PLCs to another level.
・Basic arithmetic processing speed (LD instruction): 1.86 ns
 ^{(* Actual value measured by our company)}
・Applied arithmetic processing speed (ST instruction): 2.06 ns
 ^{(*Actual value measured by our company)}
・Program capacity: 3MB
・Number of input/output tags: 512 (*16-bit data is also converted to 1 tag)
Equipped with an M.2 M Key NVMe socket. It can also be used for applications that require large storage capacity, such as high-speed data collection for long periods of time and rich HMIs.

Equipped with the same HAT (Hardware Attached on Top) 40-pin header GPIO as the Raspberry Pi. Take advantage of your Raspberry Pi peripheral assets.
As a pioneer in PC-based measurement and control, we can use up to 8 measurement and control interface boards for Raspberry Pi in the CPI series. I/O required for FA control systems, such as digital input/output, analog input/output, and counters, can be expanded by the local bus (I2C).

• HAT Size Card for Measurement and Control
• Contec's Raspberry Pi Accessories

Enhanced industrial network communication functions. It supports EtherCAT, PROFINET, EtherNet/IP and Modbus.

Equipped with OPC UA server and Web HMI function. (SoftMotion is optional)
