  2. Our Smallese Ever. Fits In The Palm of Your Hand.

BX-U200

Our Smallest Ever
Fits In The Palm of Your HandBX-U200 BOX Computer

Windows 10 IoT Enterprise 2019 LTSC・Fanless Embedded Computer

NEW NEW

Top Features of the BX-U200

Compatible with the Latest Industrial Technology
USB Type-C Connector

Contec's new BX-U200 BOX Computer features a USB Type-C connector ensuring compatibility with the latest technology for industrial equipment. A commercially available charger or AC adapter can be used as a power supply. You can charge the computer while showing the screen from a display that supports USB PD. Connect peripherals with ease using USB Type-C and it is not necessary to concern which side is up when using USB Type-C connector.

Enables Use of a wide Variety of Peripheral Devices

Display・HDMI conversion・USB hub・AC adapter
Docking station etc.

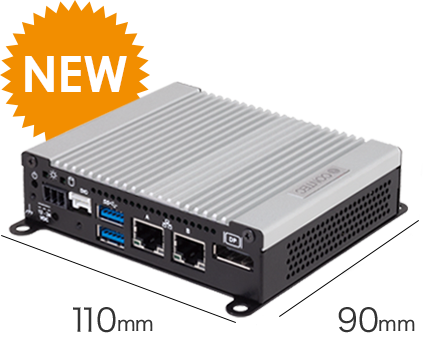

Extremely Small Form Factor
The Size of Just Two Business Cards

Don’t let its small size fool you, the BX-U200 packs a punch even in challenging industrial environments. The system features an Intel Atom x5-E3940 quad-core processor capable of operating at temperatures ranging from -30to+50°C (-22°F to 122°F) (*1) , The BX-U200 brings the functionality and reliability of an embedded computer in the compact packaging of the BOX computer brand.

  • *1 Some exceptions may apply.

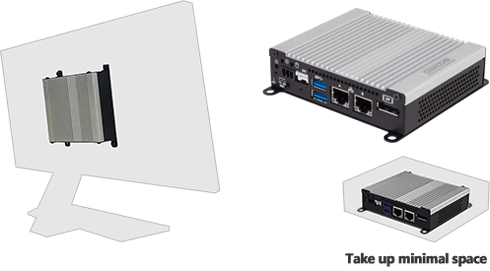

Compact, Space-Saving Design

Easily mounts to the back of display with a 100 mm VESA mount

Connect Anything
2xLAN+Wireless*2

Equipped with dual Gigabit LAN ports as well as 802.11ac wireless LAN (*2), and Bluetooth (*2). functionality, the BX-U200 is ideal as an IoT gateway terminal. The BX-U200's diverse communication capabilities can be used with host IT networks, slave OT networks or Bluetooth sensors. It can also function over mobile thanks to its wireless capabilities.

  • *2 Standard-equipped with two LAN ports. Wireless LAN models are available only in Japan. In case of use them in other regions, please contact us for more details.
Wireless LAN-MES/ERP, Bluetooth sensor and peripheral equipment, LAN1 SCADA/HMI、LAN2 field network

Ideal As An IoT Gateway Terminal

Product Questions?

Contact us

Models

Model CPU / Memory / Storage Wireless LAN・Bluetooth OS
BX-U200-NA01M03 Atom x5-E3940 1.6GHz / 4GB ECC RAM / M.2 32GB None None
BX-U200-W19M01M03 Windows 10 IoT Enterprise 2019 LTSC 64-bit (Japanese/English/Chinese/Korean)
BX-U200R-NA01M03 *3 Built-in None
BX-U200R-W19M01M03 *3 Windows 10 IoT Enterprise 2019 LTSC 64-bit
(Japanese/English/Chinese/Korean)
  • *3 Available only in Japan. In case of use in other regions, please contact us for more details.

Specifications

Model：BX-U200
CPU Intel®Atom®Processor x5-E3940 (1.6GHz) 4 core/4 thread
BIOS AMI BIOS
Memory 4GB PC3L-10600 (DDR3L-1333)
Graphics Controller Intel® HD Graphics 500
System Resolution DisplayPort : 3,840×2,160 @ 60Hz Maximum
Display DisplayPort×1, USB Type-C DP Alt Mode×1
LAN 1000BASE-T/100BASE-TX/10BASE-T RJ-45 connector×2（support Wake On LAN）
Wireless LAN IEEE 802.11ac/n/a/b/g, Bluetooth 4.2
USB USB3.1 Gen1×2 port(Type-A), USB3.1 Gen1(Type-C)×1 port
External Input / Output 1port（4pin connector）
3 bits can be set individually for input / output / power switch / reset switch by BIOS setting
Rated Input Voltage 6 to 37VDC, USB Power Delivery(15V/3A)
Physical Dimension(mm） 110(W)×90(D)×29(H)（Does not include protrusions）
Operating Temperature -30 to 60°C (-22 to 140°F) with 0.7m/s airflow
-30 to 50°C (-22 to 122°F) without airflow
-30 to 70°C (-22 to 158°F) with optional FAN module
* Derating may occur (Refer to Reference Manual)
