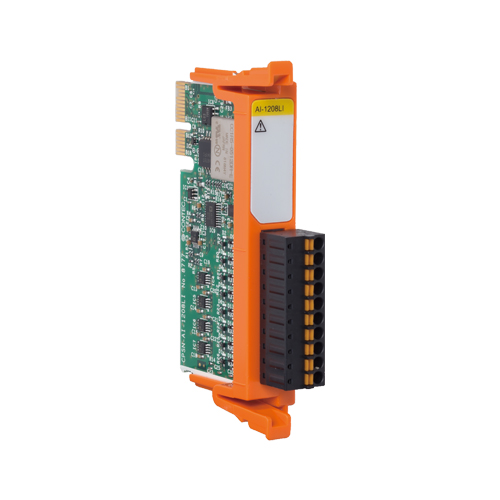

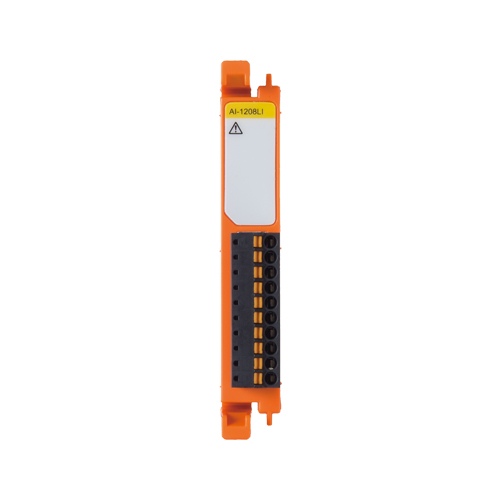

CPSN-AI-1208LI Analog Input Module for CONPROSYS nano Series I/O Module 8ch(12bit, 10μsec/ch) / Bus Isolation

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • 12-bit resolution bus isolation analog input
  • Capable of supporting multiple input range and types.
  • Easy installation and removal
  • Adaptable to a wide range of temperature between -20 and +60°C
  • No electrolytic capacitor
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is an expansion I/O module that adds a 12-bit resolution analog input interface to the CPU unit of the CONPROSYS nano series.
One module can be used as single ended voltage input with 8 channels, differential voltage input with 4 channels, or differential current input with 4 channels and the functions are switchable.

  • 12-bit resolution bus isolation analog input
    • This product has the 12-bit resolution bus isolation analog voltage input and analog current input.
      When connecting through differential input, it can measure accurately despite the potential difference

  • Capable of supporting multiple input range and types.
    • With the CPSN-AI-1208LI, voltage input and current input is switchable in the switch setting of I/O module. For voltage input, the input range and input type (single-ended input or differential input) can be switched by software command. For current input, the differential input type is ± 20mA range.
  • Easy installation and removal
    • This product can be installed in and removed from the CPU unit without any tools.
  • Adaptable to a wide range of temperature between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
  • No electrolytic capacitor
    • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
