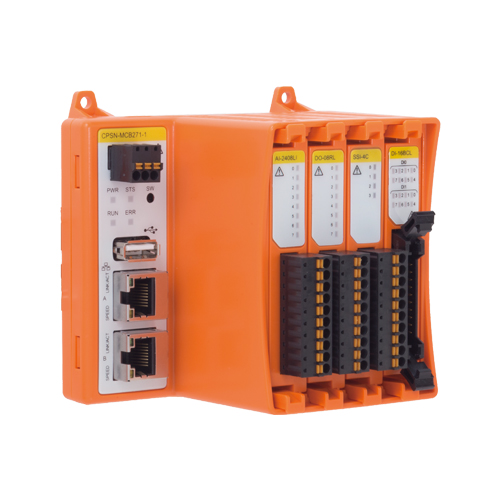

CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O - Communication Coupler / Modbus Slave / 4x Slot / 2x LAN

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a remote I/O model CPU unit that has RS-232C *1 and LAN interfaces in addition to four expansion slots. If necessary, you can freely combine this product with CONPROSYS nano series I/O modules. In addition, this product can be controlled from a PC running Windows or Linux and supports Modbus TCP Slave and Modbus RTU Slave *1.
*1: This is available with CPSN-MCB271-S1-041 model only

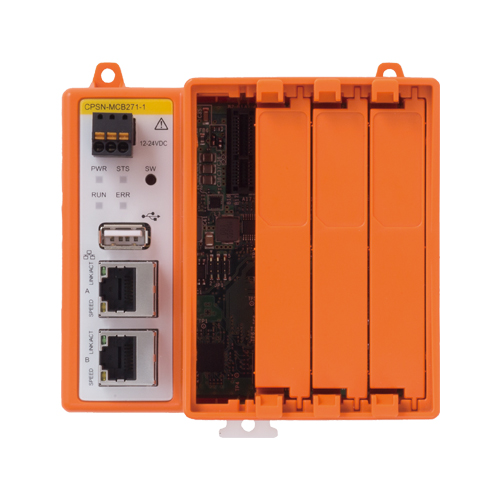

• I/O module expansion

  • With this product, you can freely add I/O modules to match the necessary functions from among the varied collection of CONPROSYS nano series I/O modules.

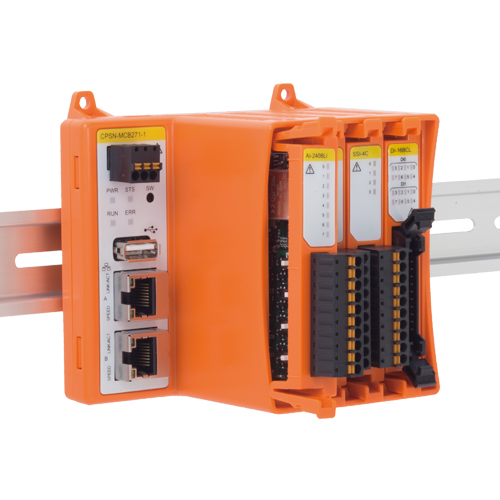

• Compact Design

  • Compact design, 110 (W) × 74.8 (D) × 95 (H) mm, features flexibility in installation
• Adaptable to a wide range of temperature between -20 and +60°C

  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
• 2 ports of LAN port containing a switch function (available with the CPSN-MCB271-1-041only)

  • The product with 2 ports of LAN port contains a switch function and can configure a network like daisy-chain connection. The CPSN-MCB271-S1-041 contains one port of LAN port.
• Applicable with Windows driver software

  • The product supplies UDP/IP-based original protocol (F&eIT) and applications can be created with Windows driver software in the Win32 API function format (DLL). n top of that, you can check whether software and hardware are operating properly with the diagnostic program.
• Support the virtual COM drive

  • Software virtual COM driver enables you to operate the product in the same way as PC COM port (standard COM). Applications can be created with the OS standard Win32 API communication function.
