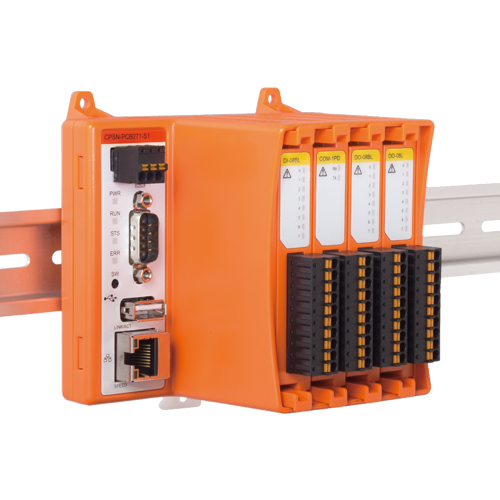

CPSN-PCB271-S1-041 CONPROSYS nano Programmable Remote I/O - Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • I/O module expansion
  • Collaborate with the CODESYS
  • Along with Modbus TCP Master and Modbus RTU Master
  • Max. 921,600bps RS-232C Serial Communication
  • Adaptable to a wide range of temperature between -20 and +60°C
  • No electrolytic capacitor
  • *
    For details about an extended warranty, please contact us

Overview / Features

This product is a CPU unit containing RS - 232C, LAN interface, and with four expansion slots to support CODESYS programming and Modbus Master. The CONPROSYS nano series configurable I/O modules can be arranged and combined along with the product to satisfy the user’s needs.

  • I/O module expansion
    • With this product, you can freely add I/O modules to match the necessary functions from among the varied collection of CONPROSYS nano series I/O modules.
  • Collaborate with the CODESYS
    • This product features the CODESYS Soft PLC. CODESYS is a device-independent-PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST and LD.
  • Along with Modbus TCP Master and Modbus RTU Master
    • Modbus is a communication protocol widely applied in the industrial field. Data collecting from devices that contain Modbus Slave function or controlling can be carried out.
  • Max. 921,600bps RS-232C Serial Communication
    • The Product has one RS-232C-standard serial port. Baud rates from 110 to 921,600 bps can be set.
  • Adaptable to a wide range of temperature between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
  • No electrolytic capacitor
    • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
