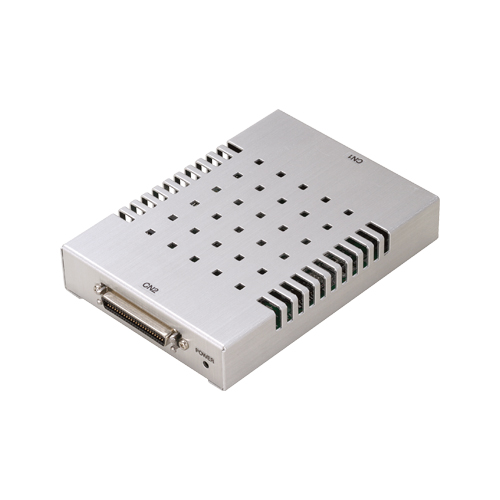

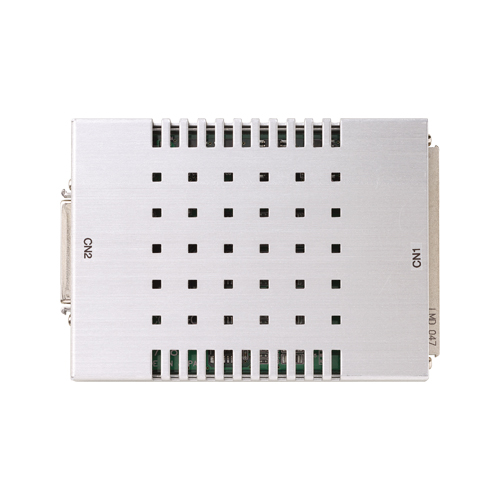

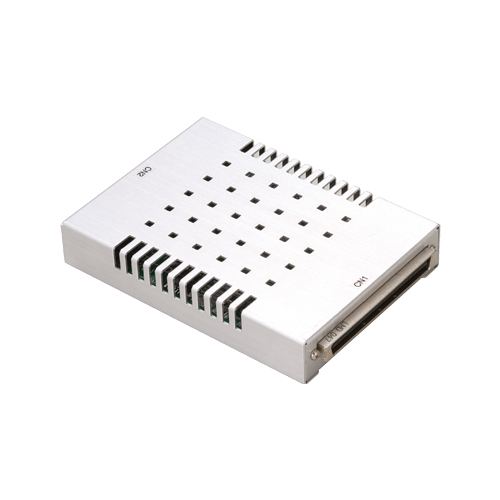

CTP-4D Termination Panel with Differential Receivers for Counter Input

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Differential input enabled with the CNT3204MT-LPE, CNT32-4MT(LPCI), CNT32-4MT(CB).
  • Designed to be compact to stay out of the way on the desktop
  • Lightweight design based on the aluminum housing
  • Easy to replace the PCI bus board CNT32-8M(PCI)
  • Built-in power LED
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
CTP-4D Termination Panel with Differential Receivers for Counter Input
  • VCCI
  • CE marking

Options

Cable

Item Item Name
CNT-68M/50M Shield Cable for Counter Input Card for CardBus
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

Item Item Name
EPD-96 Screw Terminal (M3.5 x 96)

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
