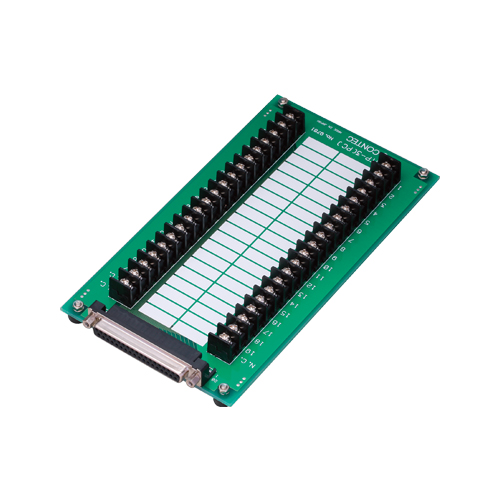

DTP-3A Screw Terminal (M3 x 37)

  • Discontinued
  • Standard Warranty1 yr
  • モーダルで開く

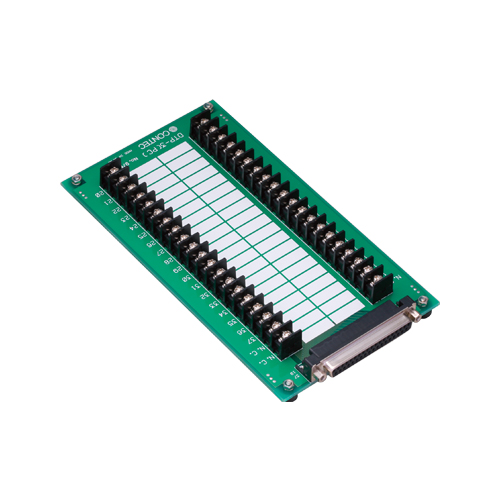

  • dtp-3a_conne_right_rgb_96dpi_500x500モーダルで開く
  • モーダルで開く
  • dtp-3a_up_rgb_96dpi_500x500モーダルで開く

Check a compatible replacement

* The end of repair date may change depending on the situation.

Overview / Features

DTP-3A is a general purpose terminal fastened with screws, which relays the I/O wirings of CONTEC interface card with a 37-pin D-SUB connector. The pins in the 37-pin D-SUB connector correspond to their respective terminals on the terminal strips on a one-to-one basis, allowing you to easily connect the card to an external device via the terminal strips.

    • A signal line from an external device can be connected to the terminal simply by using screws.
    • The optional cable can be used to connect easily to the card.
