C-LOGGER Data Logger Software for Windows

High-speed sampling and graph drawing

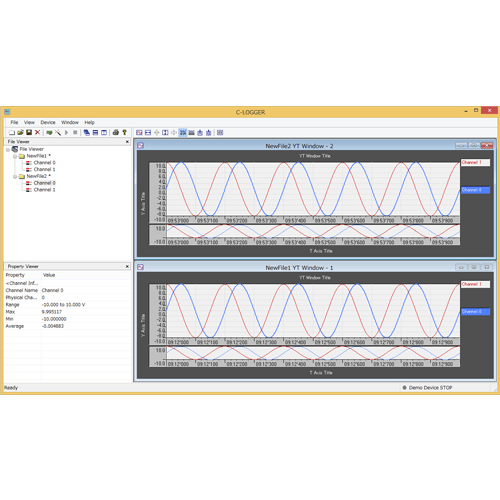

Multi-window interface

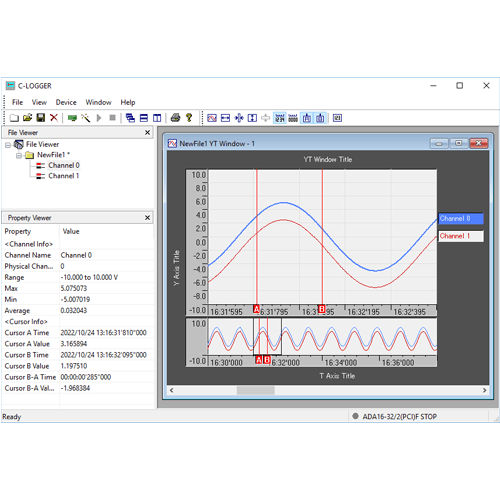

Dual-graph display for full-scale and zoom
File saving and Excel dynamic transfer

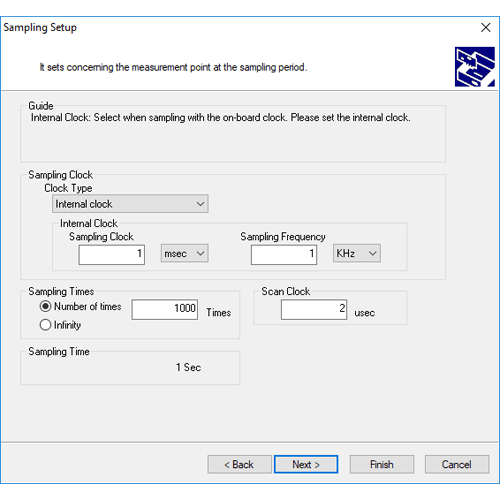

Wizard(interactive program) for easily setting sampling conditions. Capable of loading collected data from saved files. Customizable graph display(line colors, background color, label, etc.)
SDK (Software Development Kit) that enables control from external applications are supported

Contec updates C-LOGGER to be more convenient for customers.

Specifications

Application Software

Type	Data logger

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit)

Supported Series

Supported Series	PC-HELPER

Supported Devices（Analog I/O）

Ethernet
	Model
USB Module	AI-1608AIN-USB	AI-1608AY-USB	AI-1608GY-USB
	AI-1608VIN-USB	AI-1664LAX-USB	AIO-120802LN-USB
	AIO-121602LN-USB	AIO-160802AY-USB	AIO-160802GY-USB
	AIO-163202FX-USB	-	-
Ethernet	AI-1608-VIN-ETH	AI-1608AIN-ETH	-
PCI Express Card	AI-1616L-LPE	AIO-121601E3-PE	AIO-121601UE3-PE
	AIO-160802L-LPE	AIO-161601E3-PE	AIO-161601UE3-PE
	AIO-163202F-PE	AIO-163202UG-PE	AIO-163202G-PE
	AIO-123202UG-PE	AIO-123202G-PE	AI-1664UG-PE
PCI Card	AD12-16(PCI)EV	AD12-16U(PCI)EV	AD16-16(LPCI)L
	AD16-16(PCI)EV	AD16-16U(PCI)EV	AD16-64(LPCI)LA
	ADA16-8/2(LPCI)L	ADA16-32/2(PCI)F	ADAI16-8/2(LPCI)L
	ADI16-16(LPCI)L	AI-1204Z-PCI	-

Version Upgrade History

Click here to download the latest version

Ver.2.00

Additional function	SDK	Add Software Development Kit
Other		Revise installer user interface Revise the file format of C-LOGGER User's Guide (PDF -> Responsive HTML5)

Ver1.90

Additional function	Device	Support AI-1608VIN-ETH, AI-1608AIN-ETH.

Ver1.80

Additional function	Device	Support AI-1664UG-PE.

Ver1.70

Additional function	Device	Support AIO-163202G-PE, AIO-163202UG-PE, AIO-123202G-PE, AIO-123202UG-PE.

Ver1.60

Additional functions	OS	Supported Windows 11 (64bit).
		Supported Windows 10 IoT Enterprise LTSB 2016 (64bit).
		Supported Windows 10 IoT Enterprise 2019 LTSC (64bit).
		Supported Windows 10 IoT Enterprise LTSC 2021 (64bit).

Ver1.50

Additional functions	Sampling	Added the repeat count setting to set the number of repetitions of a series of operations from sampling start to stop.
	Sampling	Support for delayed sampling after a stop condition.
	Trigger	Added analog in-range trigger (signal stops within range) and analog out-range trigger (signal stops out of range) to the stop conditions.
	Application	Added support for EXCEL2019.
Update functions	UI	After setting the collection wizard, the YT window is automatically started.
		Added the magnification that can be selected in the YT window.
		Added character font change for each axis label to YT window options.
		The next measurement can be started without resetting after the measurement is completed.
Revision	Device	End of support for the following devices. AI-1216AL-PCI, AIO-121602AL-PCI, AI-1216AH-PCI, AIO-121602AH-PCI, AIO-121601M-PCI, ADI16-4(USB), ADI12-8(USB)GY
	Driver	Revised the supported driver to API-AIO (WDM) Ver7.50 or later.

Ver1.42

Revision	OS	Revised the supported OS to Microsoft Windows 10 (32bit/64bit).
	Application	Revise the supported EXCEL to EXCEL2016, EXCEL 2013.
	Device	End of support for the following devices. ADA16-32/2(CB)F , ADA16-8/2(CB)L

Ver1.40

Additional functions	Sampling	Supported for external sampling clock.

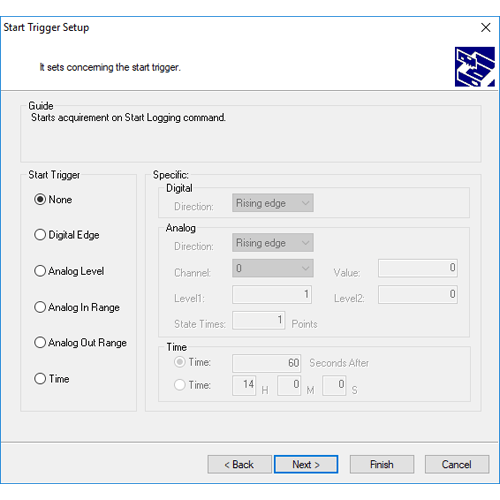

	Trigger	Added start trigger setting (time).
	Trigger	Added stop trigger settings (digital edge, analog level, time).
	UI	Added function to save capture image.
Update functions	Sampling	Auto Save can be selected even when the number of samplings is small.
		Supported the sampling clock setting including decimal (0.025usec unit).
		Supported scan clock setting including decimal (0.025usec unit).
		Supported sampling clock setting by specifying frequency (Hz).
	UI	Added information (maximum/minimum/average) to Property Viewer.

Ver1.32

Additional function	Device	Support AI-1608VIN-USB, AI-1608AIN-USB.

Ver1.30

Additional functions	OS	Support Windows 10.
	Application	Support EXCEL 2016.
	Device	Support AI-1608GY-USB.

Ver1.29

Additional functions	OS	Support Windows 8.1.
	Device	Support AI-1664LAX-USB, AIO-121602LN-USB, AIO-120802LN-USB.
	Device	Support AIO-160802GY-USB.

Ver1.28

Additional function	OS	Support EXCEL 2013.

Ver1.27

Additional functions	OS	Support 64bit OS.
Additional functions	Application	Support EXCEL 2010.
Update function	UI	The C-LOGGER UIs are improved for the user to easy use this software.

Ver1.25

Update function	Sampling	The default memory size changed from 1Mbyte to 48Mbyte on the AI-1204Z-PCI.

Ver1.23

Additional function	OS	Support Windows 7.

Ver1.22

Additional function	Device	Support AIO-163202FX-USB,AIO-121601M-PCI.

Ver1.21

Additional function	Application	Support EXCEL 2007.

Ver1.18

Additional function	Device	Support AI-1204Z-PCI.

Ver1.16

Additional function	Device	Support AIO-161601UE3-PE, AIO-161601E3-PE, AIO-121601UE3-PE, AIO-121601E3-PE.

Ver1.14

Additional function	OS	Support Windows Vista.
Additional function	Device	Support AIO-121602AL-PCI, AI-1216AL-PCI, AIO-121602AH-PCI, AI-1216AH-PCI.

Ver1.11

Additional function	Device	Support AIO-160802AY-USB.
		Support AIO-160802L-LPE.
		Support AI-1616L-LPE.

Ver1.1

Additional function	Trigger	Both (directions) is enabled as well as High and Low when using level trigger start mode.
	Device	Support AIO-163202F-PE.
	Device	Support AI-1608AY-USB.
Update functions	Sampling	Enhanced the processing capability of data logging at high speed sampling by using bus master transfer for ADA16-32/2(PCI)F, ADA16-32/2(CB)F.
	File	Logging data which remains after the stop of data-logging is saved automatically when using auto-saving mode.
	UI	Changed to display the automatically saved file name in the file viewer.

Ver1.0

Additional function		First release
