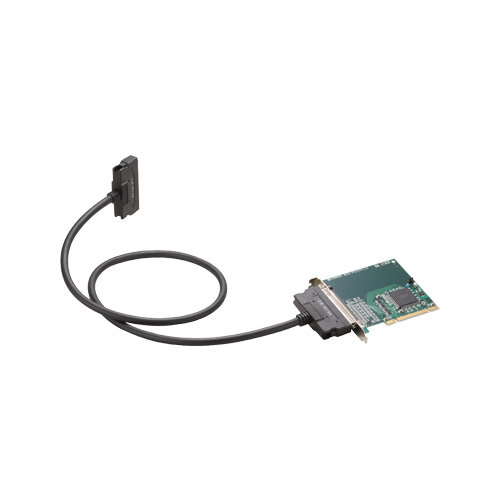

EAD(PCI)BE PCI Bus Expansion Adapter for PCI Bus PC-Slot

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Capable of expand the PCI bus (5V/32-bit, 33 MHz) from a single PCI bus slot in the PC.
  • A suitable PCI bus expansion chassis can be selected, according to the number of slots and board size required.
  • Power supply controllable in response to the turning on/off of the PC's power supply.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
EAD(PCI)BE PCI Bus Expansion Adapter for PCI Bus PC-Slot
  • CE marking
  • VCCI

Options

Expansion box

Item Item Name
ECH-PCI-BE3-F13A Bus extension type PCI bus expansion chassis (long x 13, power supply built-in)
ECH-PCI-BE3-F4B Bus extension type PCI bus expansion chassis (long x 4)
ECH-PCI-BE3-F7A Bus extension type PCI bus expansion chassis (long x 7, power supply built-in)
ECH-PCI-BE3-H2B Bus extension type PCI bus expansion chassis (short x 2)
ECH-PCI-BE3-H4B Bus extension type PCI bus expansion chassis (short x 4)
ECH-PCI-BE3-H7A Bus extension type PCI bus expansion chassis (short × 7, power supply built-in)

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
