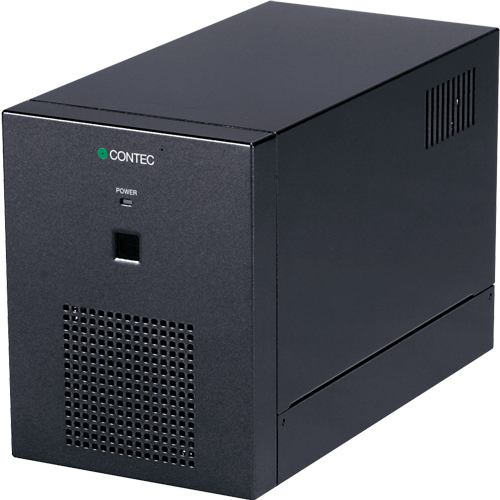

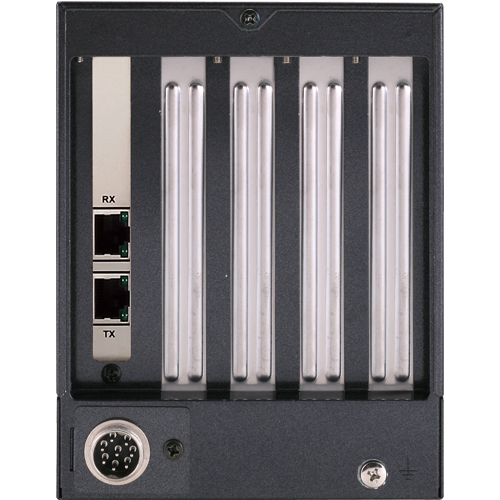

ECH(PCI)SF-H4B StarFabric conformity PCI Bus Expansion Chassis Short x 4Slots with AC adaptor

Discontinued

Standard Warranty1 yr
Extended WarrantyAvailable

End of Repair Service: 2023/01/31

Check a compatible replacement

* The end of repair date may change depending on the situation.

Capable of adding PCI bus (5V/32-bit, 33MHz) slots. ECH(PCI)SF-H4B can add 4 slots.
Accepting short-size PCI bus boards.
Power supply controllable in response to the turning on/off of the PC's power supply.
Built-in cooling fan.
Compact housing that enables a space-saving system to be constructed.
AC adapter is bandled.

*
For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model	Definition
PCI Bus Expansion Chassis Short size, 4Slots ECH-PCI-SF2-H4A	The dimensions of the expansion chassis are different. The power supply is built-in to the chassis. The usage is the same.

Ordering Information

Model	Description	Certification
ECH(PCI)SF-H4B	StarFabric conformity PCI Bus Expansion Chassis Short x 4Slots with AC adaptor

Options

Bus adapter

Item	Item Name
EAD(CB)SF	StarFabric conformity PCI Bus Expansion Adapter for CardBus PC-Slot
EAD(LPCI)SF	StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI PC-Slot
EAD-SF-LPE	StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Extended Warranty Service

Item	Item Name
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
