Overview / Features

ECH-PCI-CE-H2C is an expansion chassis that adds PCI bus slots to a PC. It can add PCI bus slots by connecting an optional expansion adapter (EAD-CE-LPE, EAD-CE-EC). ECH-PCI-CE-H2C that can be mounted is short-type [176.5 (L) x 107 (H) mm] PCI boards.

• PCI bus (5V/32bit 33MHz) slots can be added to your PC.

  • Two PCI bus (5V/32bit 33MHz) slots can be added. ECH-PCI-CE-H2C adds two PCI bus slots. This expansion chassis is connected to a PC using an optional expansion adapter.
• Short-type PCI bus boards can be connected.

  • You can connect two short-type [176.5 (L) x 107 (H) mm] PCI boards. ECH-PCI-CE-H2C can be connected two PCI Boards.

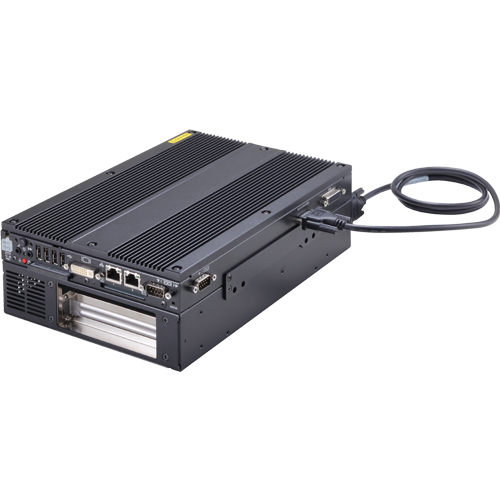

• The best case size design matched to CX100n and the BX100n series.

  • The design is not ruined by designing the case size matched to CX100n and the BX100n series.
• The cTEST controller realizes further Extensions

  • Be accessible in cTEST controller CX100n (or BOX computer BX100n) and cable assembly. Can use it in unification and separate by installing attached insulator bracket.
• A wide range of power supplies (10.8 - 31.2VDC) supported

  • As the product supports a wide range of power (10.8 - 31.2VDC), it can be used in a variety of power environments.
• The cooler fan can be installed according to the usage.

  •
