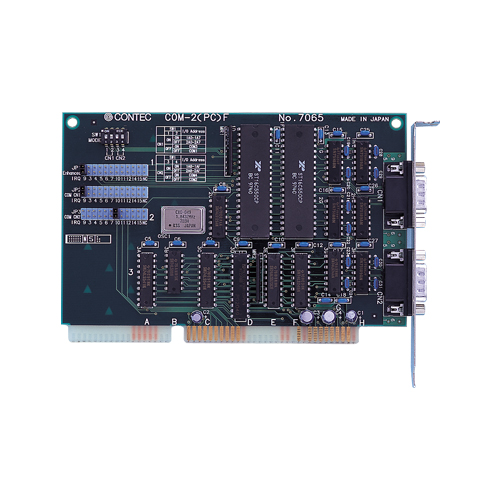

COM-2(PC)F Serial Communication ISA Card RS-232C 2ch

Discontinued

Standard Warranty3 yrs
Extended WarrantyAvailable

End of Repair Service: 2020/08/31

Check a compatible replacement

* The end of repair date may change depending on the situation.

Compatible mode (COM 1-4)
Enhanced mode
Transmission of the serial data of two channels can be performed on this one interface board.
It has the serial input-and-output port of RS-232C conformity two channels.
A setup of a transmission rate can be set up by software out of 50-115,200bps. Moreover, the transmission rate of a channel 1 and a channel 2 is independent, and can be set up.

*
For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model	Definition
Serial Communication PCI Card RS-232C 2ch COM-2(PCI)H	The bus interface is different. But the I/O connector and definition are compatible. However, the API-SIO(98/PC) driver does not support this COM-1(USB)H. Please refer to the manual for details.

Ordering Information

Model	Description	Certification
COM-2(PC)F	Serial Communication ISA Card RS-232C 2ch

Options

Device Drivers

Item	Item Name
API-SIO(98/PC)	Serial Communication Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development

Cable

Item	Item Name
RSC-9F	Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25M/9F	Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-9M/F	Straight Cable, RS-232C D-SUB9P(1.8m)

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
