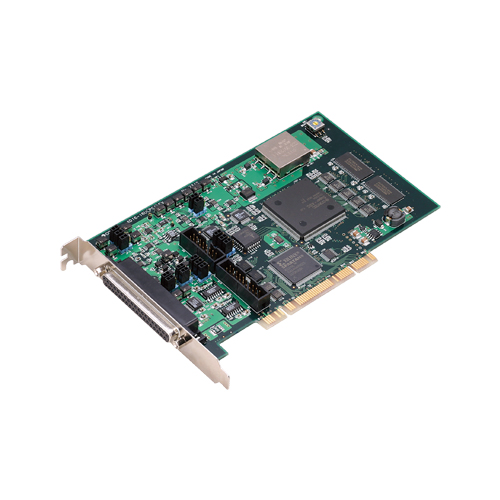

AD16-16U(PCI)EV Analog I/O PCI Card / 16ch AI(16bit 1Ms/s) / 1ch AO / 3ch Counter - Multifunction DAQ E Series

Standard Warranty3 yrs
Extended WarrantyAvailable

Resolution :16-bit, combination speed : 1μsec/ch
Equipped with high-capacity buffer memory for 16MB of data and a variety of sampling control functions
The input of 16 channels is possible(Eight differential input channels)
Mixed on-board channels for analog output and digital I/O
Compact PCI short-size board with a wealth of advanced functions Abundant optional units
Windows/Linux compatible driver libraries are supported.

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
AD16-16U(PCI)EV	Analog I/O PCI Card / 16ch AI(16bit 1Ms/s) / 1ch AO / 3ch Counter - Multifunction DAQ E Series

Options

Device Drivers

Item	Item Name
API-AIO(LNX)	Analog I/O Driver for Linux
API-AIO(WDM)	Windows version High-efficiency Analog I/O Driver
API-TIMER(W32)	Timer Driver
API-TIMER(WDM)	Windows Driver for Timer Driver
IO-LIB(WDM)	Windows General-purpose I/O Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development
ACX-PAC(W32) Express Edition	ActiveX Component for Measurement System
DAQ-LV-WIN	LabVIEW Data Acquisition Library
ML-DAQ	MATLAB compliant Data Acquisition Library

Applications

Item	Item Name
C-LOGGER	Data Logger Software for Windows

Expansion Accessory Module

Item	Item Name
ATBA-16E	Buffer Amplifier Function Extension Box for analog input card
ATII-8C	isolation function extension accessories
ATLF-8A	Gain amplifier function extension accessories
ATSS-16A	Simultaneous sampling function extension accessories
ATUH-16A(PCI)	16CH Extension Sub-card

Cable

Item	Item Name
DT-E3	16pin post header -> D-SUB 15pin Bracket with Cable(150mm)
PCA37P	37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P	A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB15PS-P	15pin D-type(M) at Each-End, Shield Cable
PCB37PS-P	37pin D-type(M) at Each End, Shield Cable
PCC16PS-1.5	Single End Coaxial Cable for 16ch Input(1.5m)
PCC16PS-3	Single End Coaxial Cable for 16ch Input(3m)
PCD8PS-1.5	2 wire Shield Cable for 8ch Differential Input (1.5m)
PCD8PS-3	2 wire Shield Cable for 8ch Differential Input (3m)

Terminal

Item	Item Name
ATP-16E	BNC Connectors terminal box for Analog I/O Card
DTP-3C	General Purpose Terminal
DTP-4C	Screw Terminal
EPD-37	Screw Terminal (M3.5 x 37)
EPD-37A	Screw Terminal (M3 x 37)
FTP-15	Screw Terminal (M3 x 15)

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
