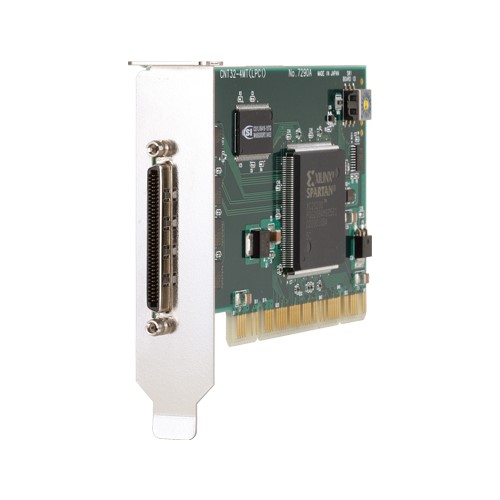

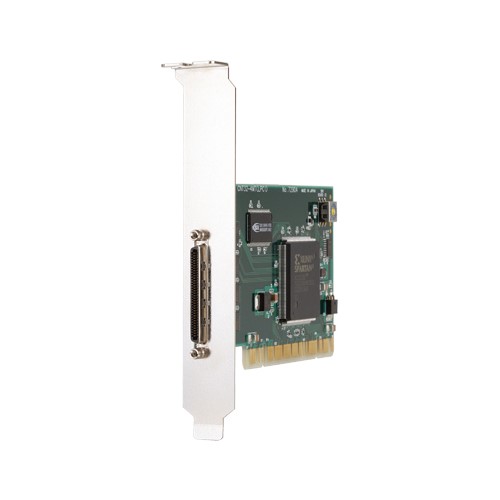

CNT32-4MT(LPCI) Counter Low Profile PCI card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Can input two-phase and single-phase signals. Can input pulse signals up to 10MHz and can resolve phase differences as short as 25nsec.
  • Can be converted to a differential input interface using the differential unit (CTP-4D) and connection cable (CNT-68M/50M) which are sold separately.
  • One control signal input pin per channel.
  • Can count values sampling at a maximum sampling rate of 20 MHz. Supporting bus mastering, enabling high-speed data transfer between the board and the PC without intervention from the CPU.
  • Can generate an interrupt, issuing an external signal, or presetting/zero-clearing the count value when it matches an arbitrary predefined value.

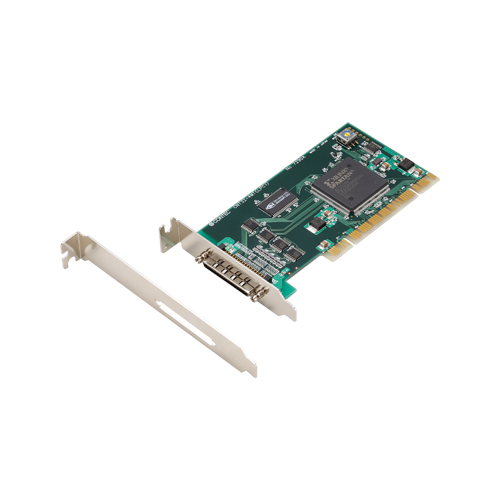

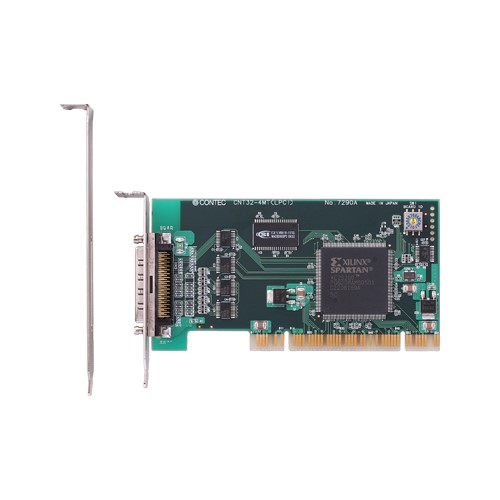

  • Support for both of low-profile and standard PCI slots (interchangeable with a bundled bracket).
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
CNT32-4MT(LPCI) Counter Low Profile PCI card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface
  • CE marking

Options

Cable

Item Item Name
CNT-68M/50M Shield Cable for Counter Input Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

Item Item Name
EPD-50A Screw Terminal (M3 x 50)
EPD-68A Screw Terminal (M3 x 68)

Expansion Accessory Module

Item Item Name
CTP-4D Termination Panel with Differential Receivers for Counter Input

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-CNT(98/PC) Windows version Counter driver
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
