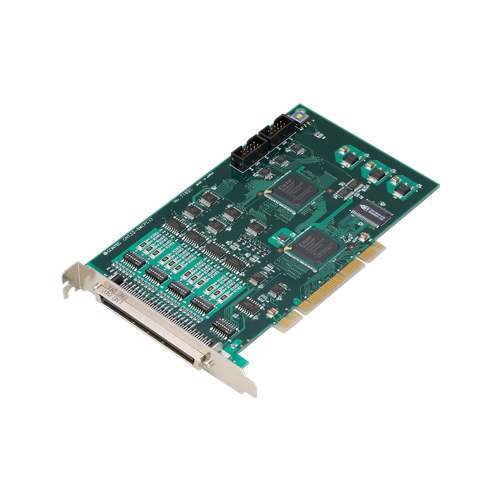

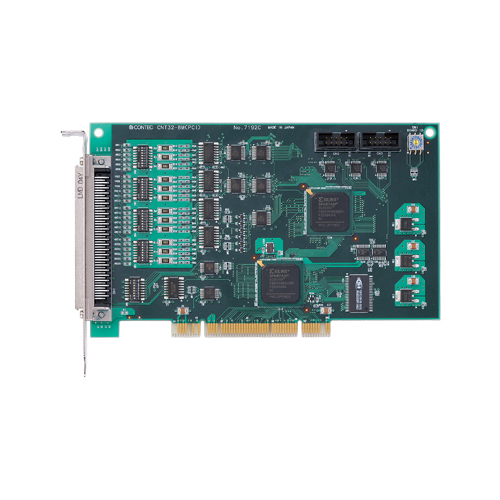

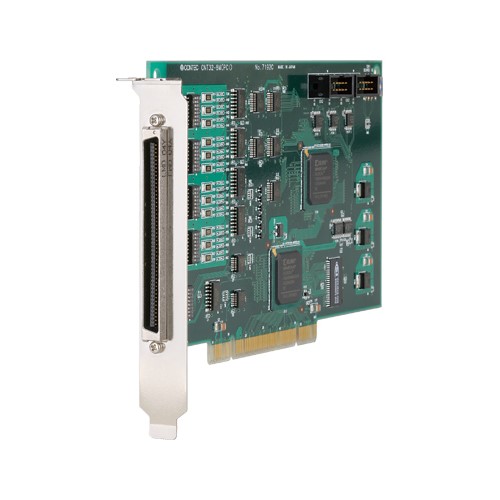

CNT32-8M(PCI) Counter PCI card 8ch (32bit Up/Down count 10MHz) / Incremental encoder interface

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • The input of two phase signal and a single phase signal is possible.
  • The input of the pulse signal to 10MHz is possible (the minimum phase difference in which the distinction in the case of being twophase signal input is possible is 25ns).
  • An input can choose either a differential input or a TTL level input for every channel.
  • The protection element is mounted in an input circuit and surge protection is realized.
  • Each channel has one control signal input.
  • The high-speed data transmission between a board and a personal computer is possible, without applying load to CPU by the PCI bus master transfer function.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
CNT32-8M(PCI) Counter PCI card 8ch (32bit Up/Down count 10MHz) / Incremental encoder interface
  • CE marking
  • VCCI

Options

Cable

Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

Item Item Name
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Other Accessories

Item Item Name
CCB-96 Connector conversion card

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-CNT(98/PC) Windows version Counter driver
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
