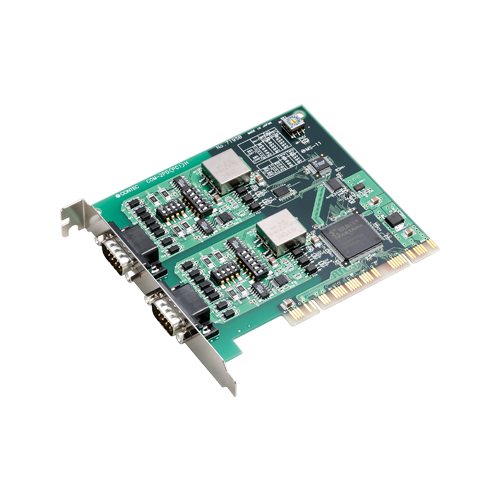

COM-2PD(PCI)H Serial Communication PCI Card RS-422A/485 2ch / Isolation and Surge Protection

Standard Warranty3 yrs
Extended WarrantyAvailable

Max. 921,600bps RS-422A/485 Serial Communication.
Possibly used as Windows, Linux-standard COM ports
Isolation between channels and between PCs, surge protection for all signal lines
Up to 16 boards can be installed
Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
The control line for RS-422A/485 can be controlled and monitored by software

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
COM-2PD(PCI)H	Serial Communication PCI Card RS-422A/485 2ch / Isolation and Surge Protection

Options

Device Drivers

Item	Item Name
API-SIO(98/PC)	Serial Communication Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
