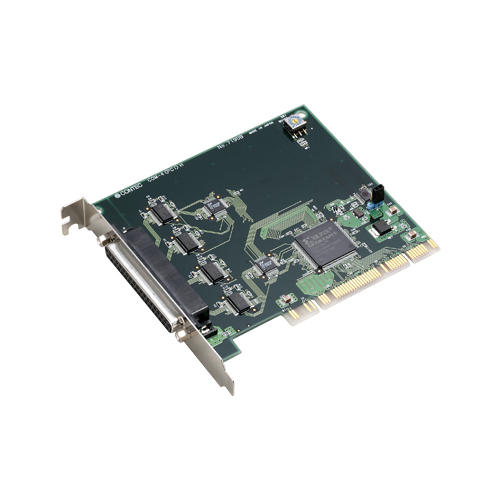

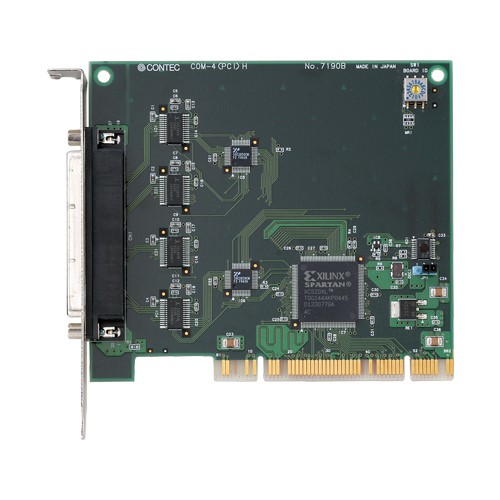

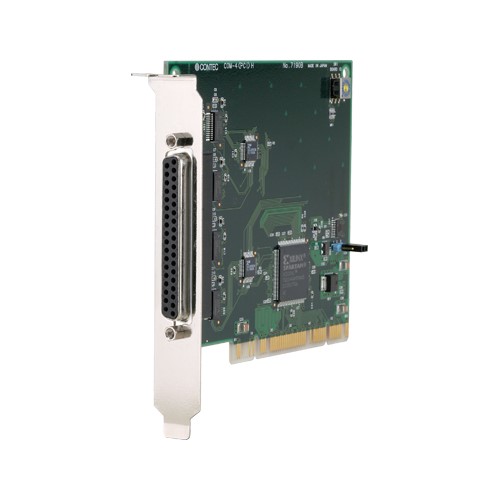

COM-4(PCI)H Serial Communication PCI Card RS-232C 4ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Maximum communication speed = 921,600bps.
  • The baud rate can be set independently for each channel, by software.
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
COM-4(PCI)H Serial Communication PCI Card RS-232C 4ch
  • CE marking
  • VCCI

Options

Cable

Item Item Name
PCE37/25PS Divider Shield cable, D-SUB37pin -> 25pin x4 (0.25m)
PCE37/9PS Divider Shield cable, D-SUB37pin -> 9pin x4 (0.25m)
RSC-9F Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25F/9M Straight Cable for Connector Conversion, RS-232C(25F -> 9M, 1.8m)
RSS-25M/9F Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-25M/F Straight Cable, RS-232C D-SUB25P(1.8m)
RSS-78M/37M Connection Cable of COM-4ch for CCU-78F/25M(2m)
RSS-9M/F Straight Cable, RS-232C D-SUB9P(1.8m)

Other Accessories

Item Item Name
CCU-78F/25M Divider Unit for COM-8Ch / 4Ch Card

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-SIO(98/PC) Serial Communication Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
