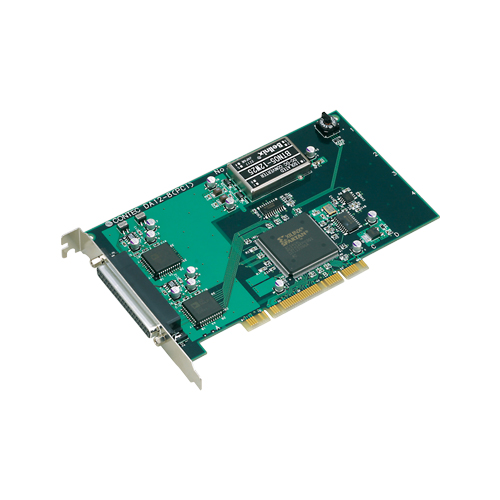

DA12-8(PCI) Analog Output PCI Card / 8ch(12bit 100ks/s)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Support for unipolar and bipolar output ranges
  • Two output modes selectable
  • Capable of updating the output voltage using a generating clock
  • Safety design to adjust output voltage to 0V when power supply is turned on
  • Optional units
  • Windows/Linux support device driver
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
DA12-8(PCI) Analog Output PCI Card / 8ch(12bit 100ks/s)
  • CE marking
  • VCCI

Options

Device Drivers

Item Item Name
API-AIO(98/PC) Windows version Analog I/O Driver
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB General I/O Driver
IO-LIB(LNX) Linux General-purpose I/O Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Applications

Item Item Name
C-WaveformGenerator Waveform Generator for Windows

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
PCC16PS-1.5 Single End Coaxial Cable for 16ch Input(1.5m)
PCC16PS-3 Single End Coaxial Cable for 16ch Input(3m)

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
