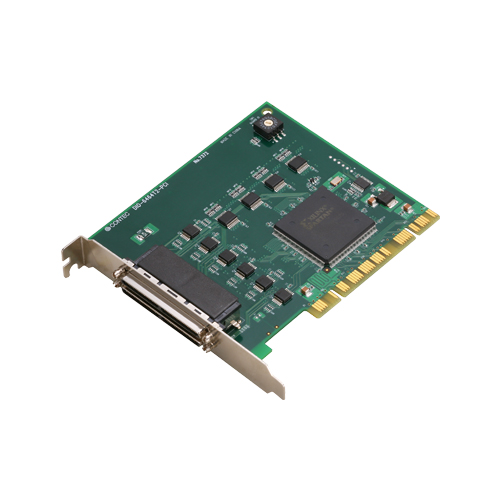

DIO-6464T2-PCI Digital I/O PCI card 64ch/64ch (non-isolated 5VDC-TTL)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Unisolated TTL level input, unisolated open-collector output
  • You can use 16 input signals as interrupt request signals.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DIO-6464T2-PCI Digital I/O PCI card 64ch/64ch (non-isolated 5VDC-TTL)
  • CE marking

Options

Cable

Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Other Accessories

Item Item Name
CCB-96 Connector conversion board

Software Development Kit

Item Item Name
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
