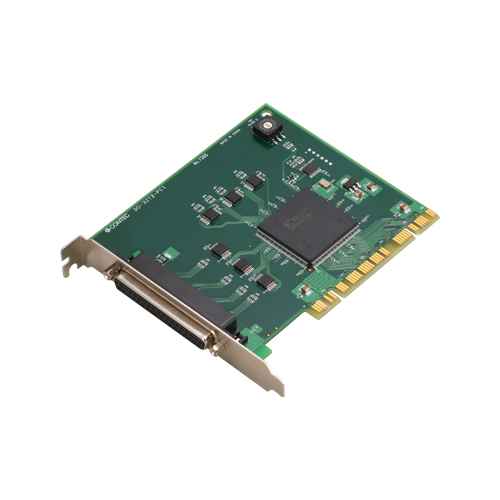

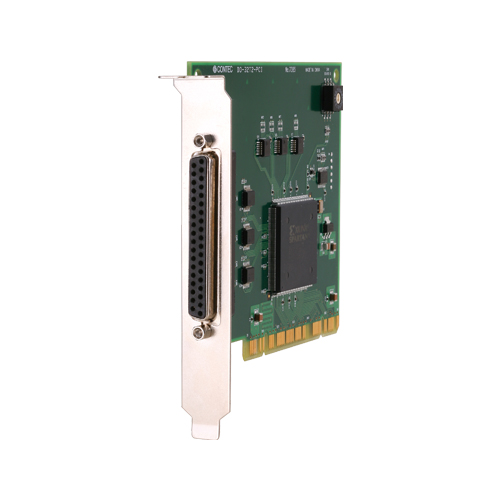

DO-32T2-PCI Digital output PCI card 32ch (non-isolated 5VDC-TTL)

  • Discontinued
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • End of Repair Service: 2020/12/25

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • 32ch of unisolated open-collector output
  • Windows and Linux driver libraries are included
  • LabVIEW support
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
Digital output PCI Express card 32ch (non-isolated 5VDC-TTL)
DO-32T-PE
The bus interface is different but the functions, I/O connector and the connector pin definitions are compatible. Please refer to the manual for more details.

Ordering Information

Model Description Certification
DO-32T2-PCI Digital output PCI card 32ch (non-isolated 5VDC-TTL)
  • CE marking
  • VCCI

Options

Device Drivers

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Development Support Tools

Item Item Name
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
