GP-IB(PCI)F High-performance & High-speed GPIB Interface Board for PCI

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • gp-ib(pci)f_rgb_96dpi_500x500モーダルで開く
  • gp-ib(pci)f_conn_rgb_96dpi_500x500モーダルで開く

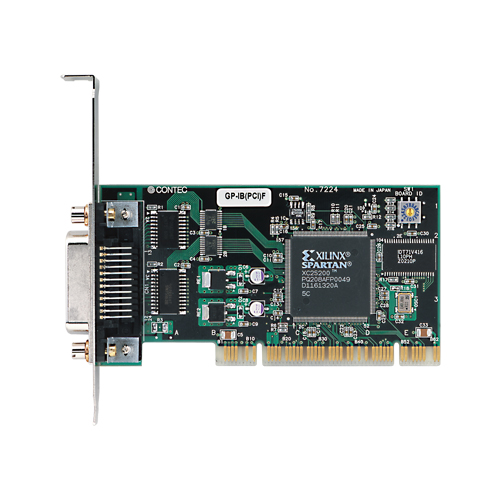

  • gp-ib(pci)f_up_rgb_96dpi_500x500モーダルで開く
  • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
  • Supports bus master operation
  • Internal 2Kbyte FIFO buffers for send and receive
  • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
  • Built-in SPAS event function (when slaving)
  • Windows/LabVIEW compatible support software is offered.
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is a PCI Express bus-compatible interface board with support for bus master operation and which complies with IEEE-488.1 and IEEE-488.2. This product can be used in a PC to control communications with devices that support the GPIB interface and read GPIB bus line data. The GP-IB(PCI)F can also analyze the signal on the GPIB bus using the built-in memory (GPIB bus analyzer function). Windows/LabVIEW device driver is supported with this product.

  • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
    • Capable to communicate with any equipment which is compatible to IEEE-488.1/488.2 standards with transfer rate at 1.5 Mbyte/sec maximum. Capable to set this product to whether a master (controller) or a slave.
  • Supports bus master operation
    • The bus master data transfer function enables large quantities of data to be transferred between the board and PC without loading the CPU.
  • Internal 2Kbyte FIFO buffers for send and receive
    • The board has separate 2Kbyte FIFO buffers for sending and receiving data, allowing both small and large volumes of data to be transferred at high speed. Interface messages also use a FIFO to enable high-speed transmission.
  • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
    • This product employs CONTEC's self-developed high speed GPIB controller (μPD7210 register-compatible), which provides users steady-supply with peace of mind.
  • Built-in SPAS event function (when slaving)
    • In addition to the functions of the earlier GPIB controller (μPD7210), the product also supports the SPAS event generated when a serial poll occurs. This gives users a high level of flexibility in constructing the system.
  • Windows/LabVIEW compatible support software is offered.
    • The support software offered on the CONTEC website makes it possible to create applications of Windows/LabVIEW. In addition, supplies a diagnostic program to confirm hardware operation and to perform a basic communication test with connected equipment.
