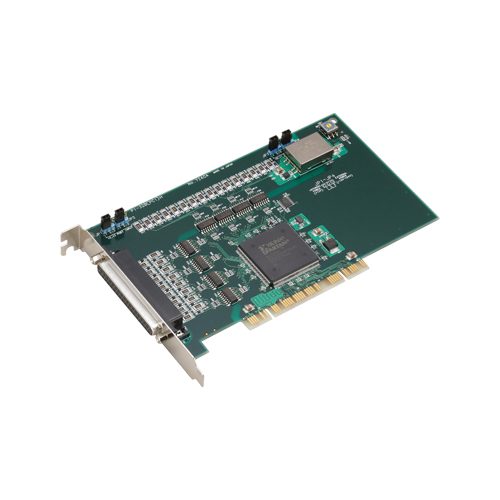

PI-32B(PCI)H Digital input PCI card 32ch (12VDC on-board power supply isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • It can respond to a common independently different external power supply because of the common composition of 16-point unit.
  • Since the PCI bus (personal computer) and the input-and-output interface are isolated by the photo-coupler, it excels in noise-protection nature.
  • All the input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
  • It has the digital filter function for preventing the incorrect input by the noise or the chattering.
  • The power supply for a photo-coupler drive is built in. It can choose whether this built-in power supply is used or an external power supply is used.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
PI-32B(PCI)H Digital input PCI card 32ch (12VDC on-board power supply isolated 12 - 24VDC)
  • CE marking

Options

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
