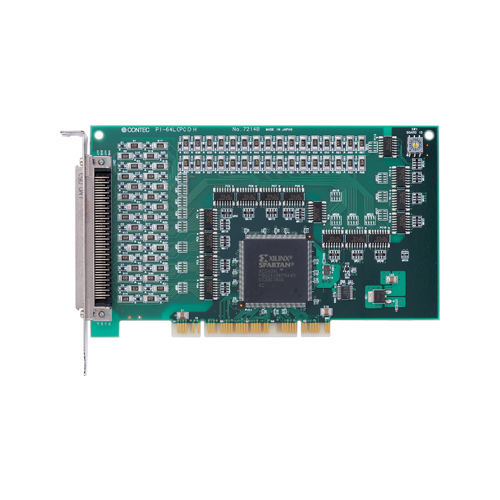

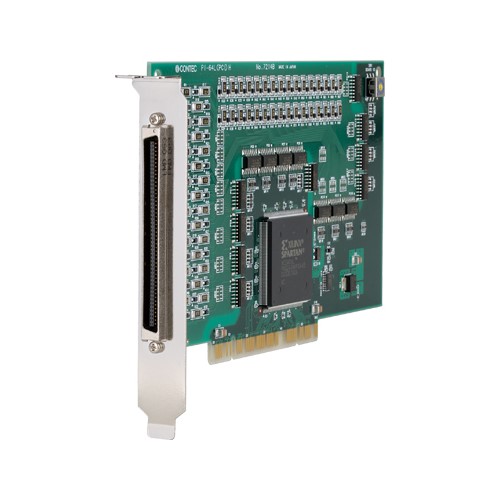

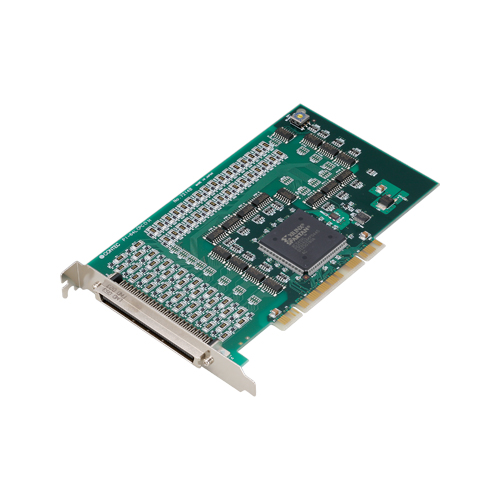

PI-64L(PCI)H Digital input PCI card 64ch (isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • pi-64l(pci)h_rgb_96dpi_500x500モーダルで開く
  • pi-64l(pci)h_conn_rgb_96dpi_500x500モーダルで開く
  • pi-64l(pci)h_up_rgb_96dpi_500x500モーダルで開く
  • It can respond to a common independently different external power supply because of the common composition of a 16-point unit.
  • Since the PCI bus (personal computer) and the input-and-output interface are isolated by the photo-coupler, it excels in noise-protection nature.
  • 32 points of an input signal can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
  • It has the digital filter function for preventing the incorrect input by the noise or the chattering.
  • PI-64L(PCI)H and PI-64L(PCI) are connector pin compatibles.
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is the interface board of PCI bus conformity which inputs a digital signal. The digital signal of 12-24VDC can be inputted. The input of a maximum of 64 points can be performed on one board. The driver (API-PAC(W32)) for Windows and Linux appending.

  • It can respond to a common independently different external power supply because of the common composition of a 16-point unit.
  • Since the PCI bus (personal computer) and the input-and-output interface are isolated by the photo-coupler, it excels in noise-protection nature.
  • 32 points of an input signal can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
  • It has the digital filter function for preventing the incorrect input by the noise or the chattering.
  • PI-64L(PCI)H and PI-64L(PCI) are connector pin compatibles.
