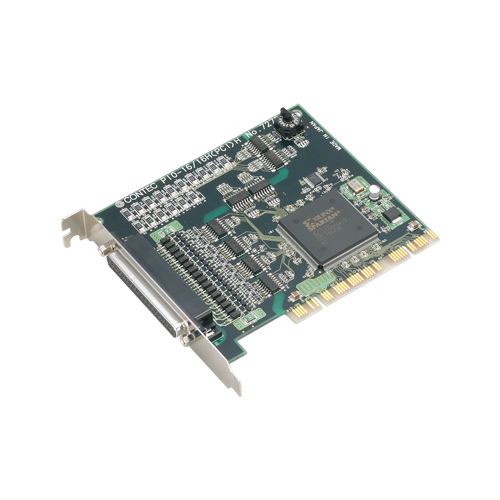

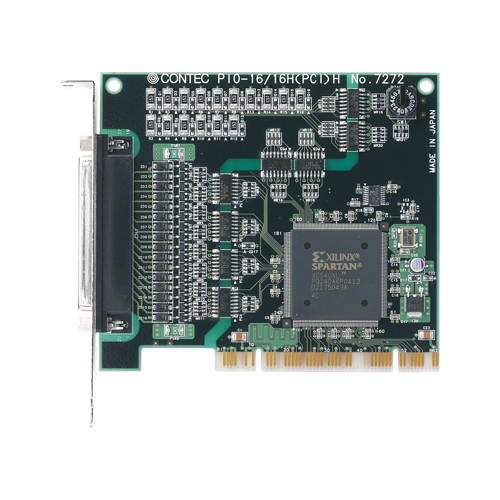

PIO-16/16H(PCI)H Digital I/O PCI card 16ch/16ch (isolated 24 - 48VDC)

  • Discontinued
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • End of Repair Service: 2019/06/28

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Corresponding to the high voltages (24 - 48VDC) I/O.
  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity.
  • You can use all of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
Digital I/O PCI card 32ch/32ch (isolated 24 - 48VDC)
PIO-32/32H(PCI)H
I/O functions are compatible but the number of I/O channels and the I/O connector are different.

Ordering Information

Model Description / Certification
PIO-16/16H(PCI)H Digital I/O PCI card 16ch/16ch (isolated 24 - 48VDC)
  • CE marking

Options

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
EPD-37 Screw Terminal (M3.5 x 37)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
