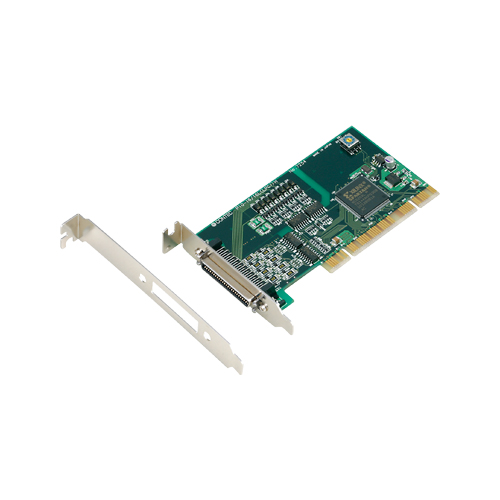

PIO-16/16L(LPCI)H Digital I/O Low Profile PCI card 16ch/16ch (isolated 12 - 24VDC)

Standard Warranty3 yrs
Extended WarrantyAvailable

A different external power supply can be used for each common pin as it is shared by 16 channels.
The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity.
You can use all of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs.

*
For details about an extended warranty, please contact us.

Specifications

Add-on Module

Series
Bus Specification	PCI
Size	Low Profile
Used Connector	Miniature ribbon 50-pin

Digital I/O

Input Channels	16-ch
Output Channels	16-ch
Bi-directional I/O Channels	-
Response Time (Input)	200μsec (max.)
Response Time (Output)	200μsec (max.)
Operating Voltage (Input)	12 to 24VDC
Operating Voltage (Output)	12 to 24VDC
Input Circuit	Opto-isolated input (for sink current output)
Output Circuit	Opto-isolated open-collector output (current sink type)
Built-in Power Supply	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
