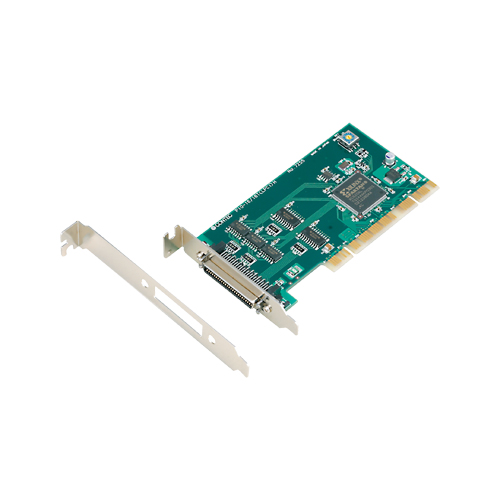

PIO-16/16T(LPCI)H Digital I/O Low Profile PCI card 16ch/16ch (non-isolated 5VDC-TTL)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • TTL-level input/output enabling fast response
  • Capable of receiving 16-channel TTL digital signals
  • Capable of sending 16-channel open-collector digitals
  • You can use all of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs
  • Up to 30VDC, 40mA per signal, max. output
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
PIO-16/16T(LPCI)H Digital I/O Low Profile PCI card 16ch/16ch (non-isolated 5VDC-TTL)
  • CE marking
  • VCCI

Options

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
PCE50/37PS-0.5P 50 pin miniature ribbon --> 37 pin D-SUB conversion shield cables(Mold type, 0.5m)

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-50A Screw Terminal (M3 x 50)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
