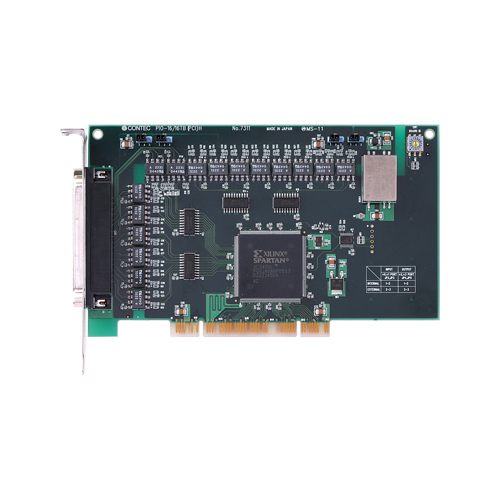

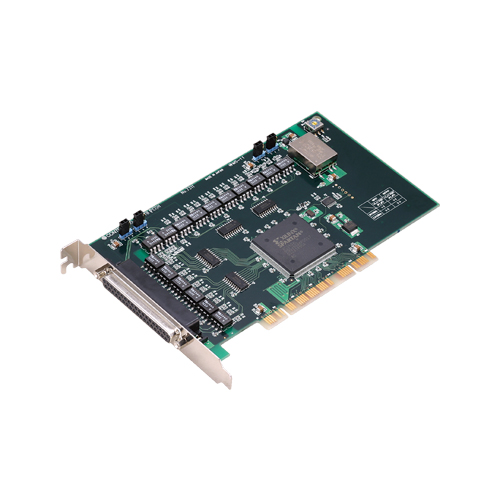

PIO-16/16TB(PCI)H Digital I/O PCI card 16ch/16ch (5VDC on-board power supply high-speed isolated 5VDC-TTL)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Noise-protection nature is improving by Opto-isolated input and output
  • Signal arrangement of a connector is same as PIO-16/16TB(PCI), and compatibility
  • It can input 16 points TTL level digital signal.
  • It can output 16 points TTL level digital signal
  • All the 16 input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen. It has the digital filter function in which the noise and chattering of an input signal can be prevented
  • The power supply for a photo-coupler drive is built in. Moreover, selection of a built-in power supply (5VDC, 600mA) / external power supply is possible
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
PIO-16/16TB(PCI)H Digital I/O PCI card 16ch/16ch (5VDC on-board power supply high-speed isolated 5VDC-TTL)
  • CE marking
  • VCCI

Options

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
