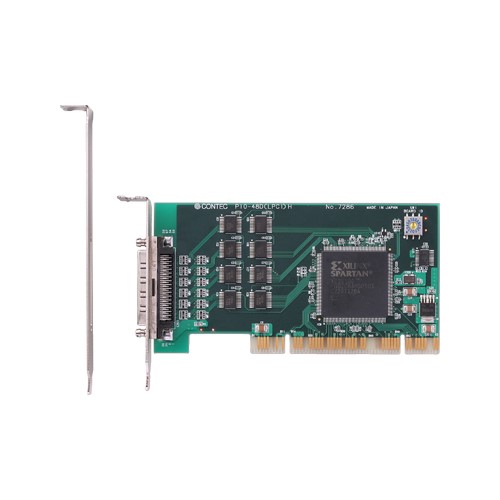

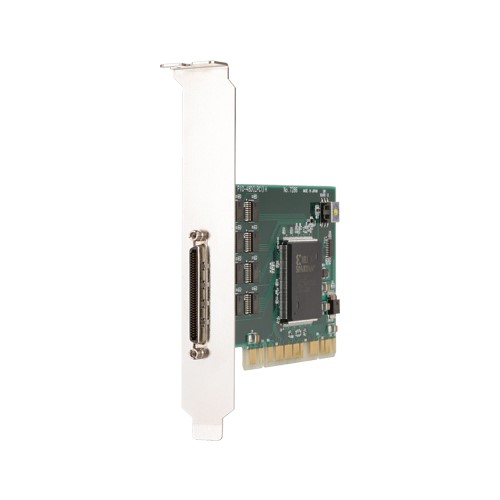

PIO-48D(LPCI)H Digital I/O Low Profile PCI card bi-directional 48ch (non-isolated 5VDC-TTL)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • This board can be used to TTL-level input/output 48 points bi-directional digital corresponding to to the equivalence to the i8255 mode 0.
  • You can use up to 48channels of the input signals as interrupt events.You can use up to
  • This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering
  • Windows/Linux compatible driver libraries are attached
  • Connectors are compatible with CardBus compatible card PIO-48D(CB)H
  • Support for both of Low Profile and standard size slots
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
PIO-48D(LPCI)H Digital I/O Low Profile PCI card bi-directional 48ch (non-isolated 5VDC-TTL)
  • CE marking

Options

Cable

Item Item Name
DIO-68M/96F Shielded Cable for Digital I/O Card for CardBus (0.5m)
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

Item Item Name
DTP-64A Screw Terminal (M3 x 96)
EPD-68A Screw Terminal (M3 x 68)
EPD-96 Screw Terminal (M3.5 x 96)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
