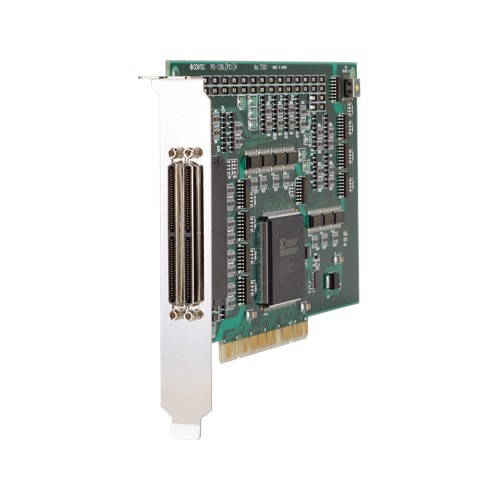

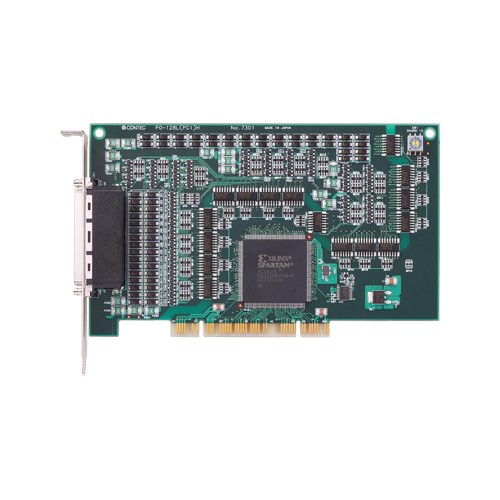

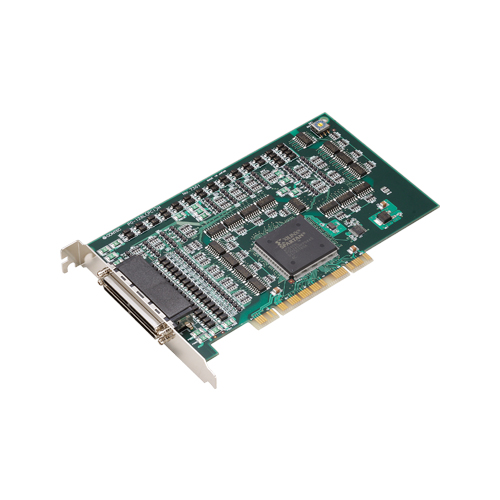

PO-128L(PCI)H Digital output PCI card 128ch (isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Common power-supply configuration in 16 channel units, capable of supporting different external power supplies.
  • Optocoupler used to electrically isolated output signal interface from the PCI bus, offering good noise immunity
  • Up to 35VDC, 100mA per signal, max. output
  • Zener diode connected to output transistors for protection from surge voltage. Over-current protective device provided for every eight channels of output transistors.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
PO-128L(PCI)H Digital output PCI card 128ch (isolated 12 - 24VDC)
  • CE marking

Options

Cable

Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Expansion Accessory Module

Item Item Name
CM-64L Signal monitor Accessory for Digital I/O

Other Accessories

Item Item Name
CCB-96 Connector conversion board

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
