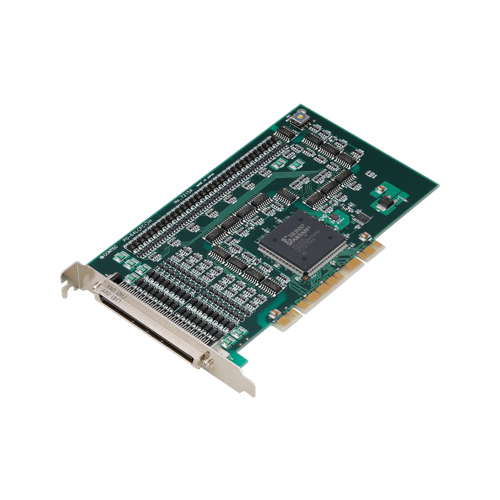

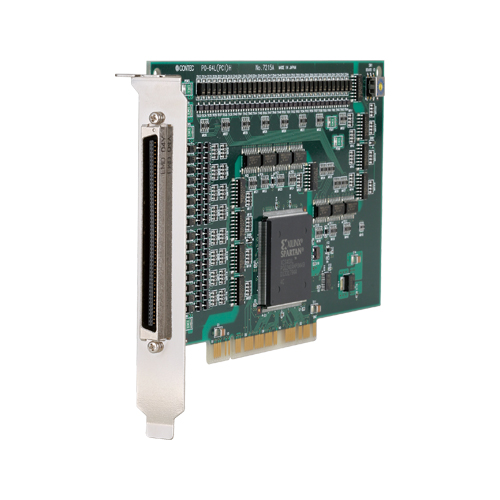

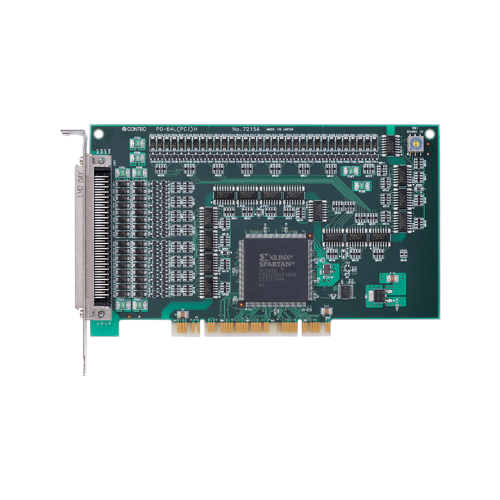

PO-64L(PCI)H Digital output PCI card 64ch (isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • A diffrent external power supply can be used for each common pin as it is shared by 16 channels
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler,offerting good noise immunity
  • You can also select the interrupt trigger edge of the input signal
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
PO-64L(PCI)H Digital output PCI card 64ch (isolated 12 - 24VDC)
  • CE marking

Options

Cable

Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Other Accessories

Item Item Name
CCB-96 Connector conversion board

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
