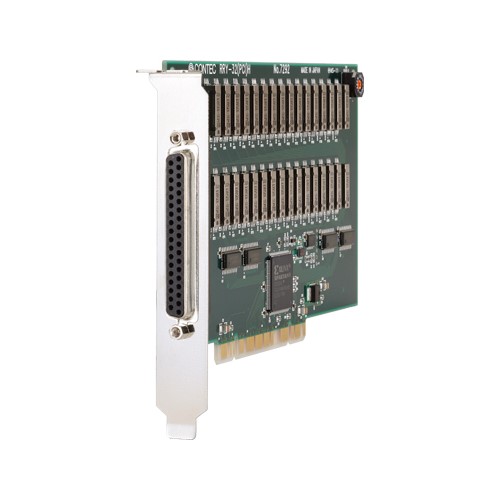

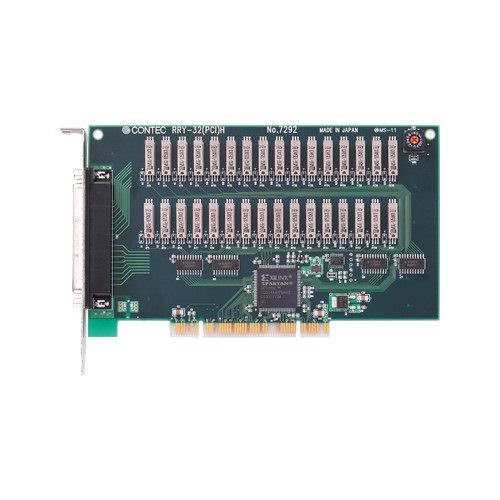

RRY-32(PCI)H Reed relay contact output PCI card 32ch (isolated - 100VAC - 100VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • 32 reed relays with a single make contact are implemented. These relays are classified into four groups, each group (eight relays) sharing a minus common pin.
  • Output ratings are designed for a maximum of 100VAC/100VDC and 500 mA per channel, a maximum of 1A for each group (one group of eight channels share a minus common). Relay contactor rating is 10VA(10W) maximum.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
RRY-32(PCI)H Reed relay contact output PCI card 32ch (isolated - 100VAC - 100VDC)
  • CE marking

Options

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
