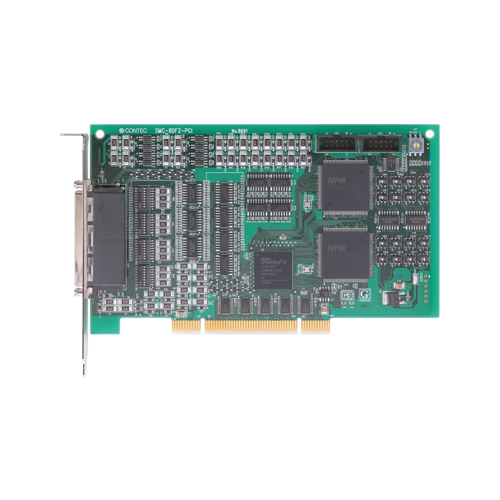

SMC-8DF2-PCI High-Speed Motion Control Board for PCI (8 axes)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Capable of multi-axis independent control and pulse output up to 6.5Mpps
  • Capable of various control operations such as positioning,linear/circular interpolation, frame continuous operations,synchronization control, and so on
  • Provided with various output formats enabling connection to an encoder input circuit
  • Capable of storing positioning information up to 1024 frames for each axis and control without extra CPU load
  • Provided with various input formats enabling connection to pulse output format switching function
  • With the multi-boards and axis synchronization control function, capable of aligning the timing for operation start and end
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
SMC-8DF2-PCI High-Speed Motion Control Board for PCI (8 axes)
  • CE marking
  • VCCI



Item Item Name
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors


Item Item Name
EPD-100A Screw Terminal (M3 x 100)

Other Accessories

Item Item Name
CCB-SMC2 Conversion terminal for SMC series

Software Development Kit

Item Item Name
API-SMC(LNX) Linux Driver for Motion Control
API-SMC(WDM) Motion Control Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
