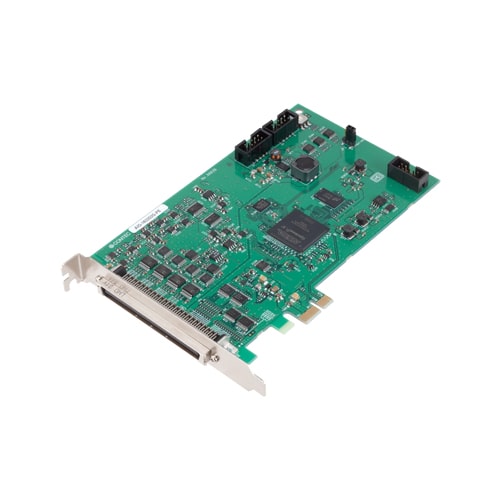

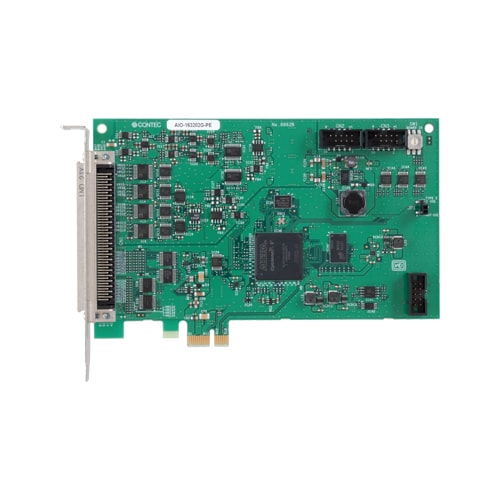

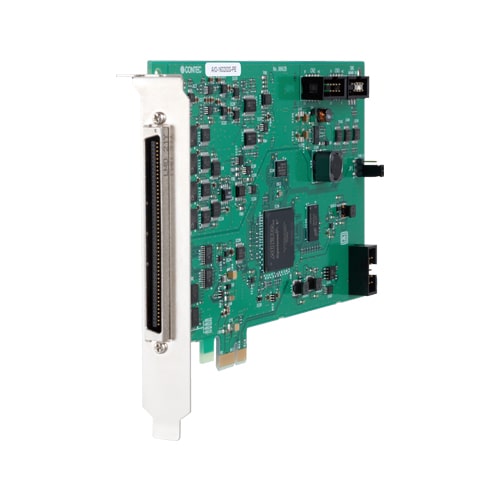

AIO-163202G-PE Analog I/O PCI Express Card / 32ch AI (16bit 100KSPS) / 2ch AO Counter - Multifunction DAQ G Series

High-performance, multifunction single DAQ device with analog and digital input/output and counter functions
Adopts and improves on the functions of the Analog E Series with compatibility for the Analog F Series
DMA bus master transfer function for high-speed, continuous sampling
Built-in event controller for advanced synchronization control
Synchronized operation of up to 16 devices (connection via synchronization connector)
Wide selection of wiring accessories and expansion modules with various functions

Similar models

Series	Analog G(High-speed, High-precision Multi-function)
Bus Specification	PCI Express
Size	Short Size
Used Connector	1.27mm-pitch 96-pin (Male); 2x Pin header 10-pin (Male)

Input Channels	Single-ended 32-ch (Differential 16-ch)
Input Range	±10V; ±5V; ±2.5V; 0 to 10V; 0 to 5V; 0 to 2.5V
ADC Resolution	16-bit
Sampling Rate	10μsec/ch (max.)
Input Buffer Memory	128M Word
Output Channels	2-ch
Output Range	±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V
DAC Resolution	16-bit
Update rate	10μsec (max.)
Output Buffer Memory	256k Word

Input Channels	8-ch/16-ch
Output Channels	8-ch/16-ch
Bi-directional I/O Channels	16点
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	3.3VDC-LVTTL
Operating Voltage (Output)	3.3VDC-LVTTL
Input Circuit	Non-isolated LVTTL level input (Positive logic)
Output Circuit	Non-isolatedLVTTL level output (Positive logic)
Built-in Power Supply	-

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
