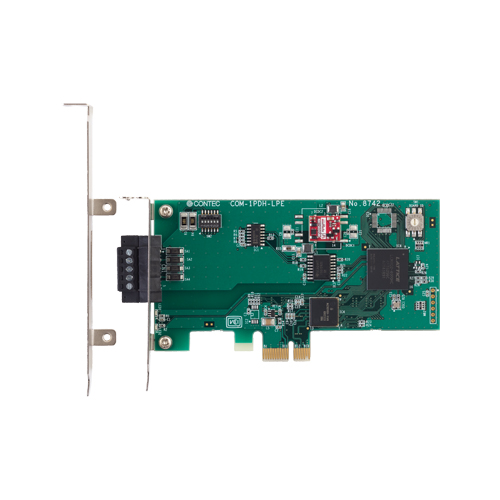

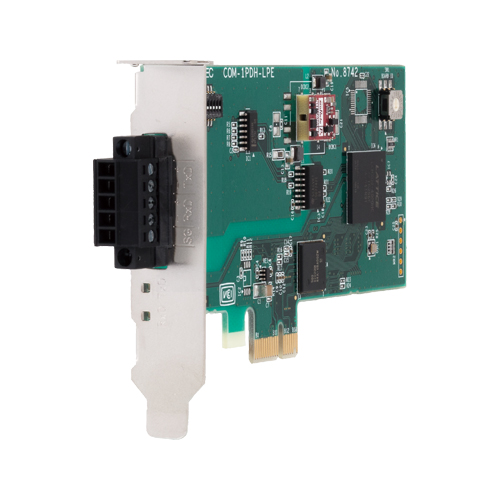

COM-1PDH-LPE RS-422A/485 1ch Serial I/O Card with Isolation for PCI Express Low Profile

Standard Warranty3 yrs
Extended WarrantyAvailable

Max. 921,600bps RS-422A/485 Serial Communication
Possibly used as Windows-standard COM ports.
Isolation between PCs, surge protection for all signal lines
LEDs for operation check within; Equipped with 2- piece terminal
Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
Support for Low Profile size slot / standard size slot

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series	-
Bus Specification	PCI Express
Size	Low Profile
Used Connector	1x 3.5mm-pitch 5-pin 2-piece terminal block

Serial Comm.

Number of Channels	1x RS-422A/485 [ASYNC]
Transmission Speed	30 ~ 921,600bps
Isolation Property	Isolated & Surge protection
Transmission Method	RS-422A/485 [Asynchronous]

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
