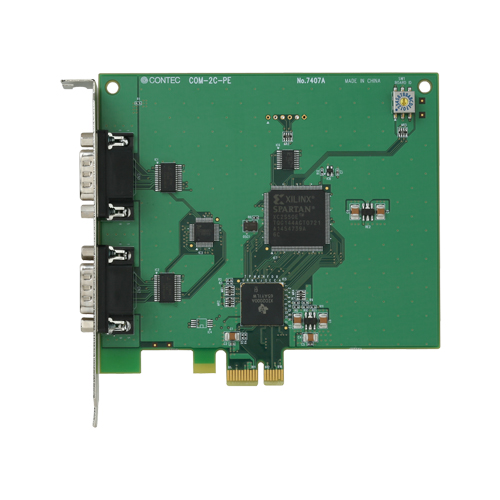

COM-2C-PE Serial Communication PCI Express Card RS-232C 2ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Max. 921,600bps RS-232C Serial Communication
  • Possibly used as Windows, Linux-standard COM ports, using the bundled driver library
  • Max. 16 cards can be installed as configured in the range COM1 - COM256.
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
  • The cards use the same easy-to-use 9-pin D-SUB connectors as are used on a PC.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
COM-2C-PE Serial Communication PCI Express Card RS-232C 2ch
  • CE marking
  • VCCI

Options

Cable

Item Item Name
RSC-9F Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-9M/F Straight Cable, RS-232C D-SUB9P(1.8m)

Other Accessories

Item Item Name
CCU-78F/25M Divider Unit for COM-8Ch / 4Ch Card

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-SIO(98/PC) Serial Communication Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
