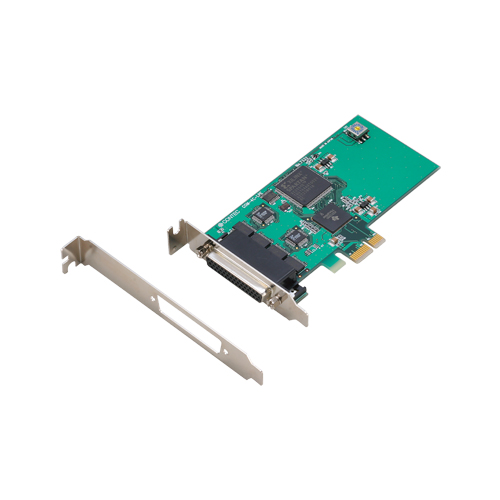

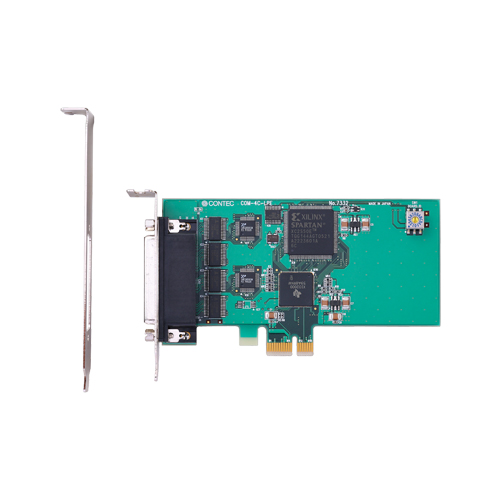

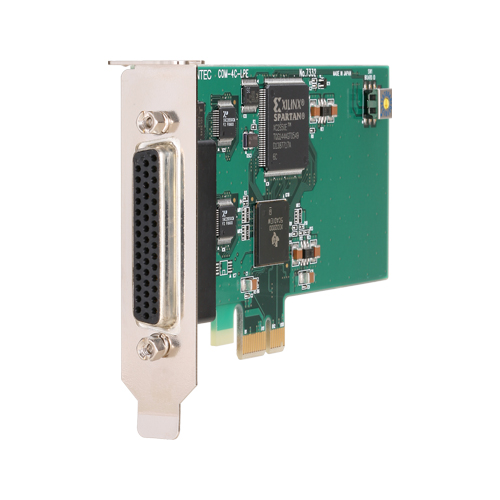

COM-4C-LPE Serial Communication Low Profile PCI Express Card RS-232C 4ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Max. 921,600bps RS-232C Serial Communication
  • Possibly used as Windows, Linux-standard COM ports, using the bundled driver library
  • Max. 16 cards can be installed as configured in the range COM1 - COM256.
  • Equipped with separate 128-byte FIFObuffers for transmit and receive.
  • To suit your application, cables and connectors are available as optional.
  • The control line for RS-232C can be controlled and monitored by software.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
COM-4C-LPE Serial Communication Low Profile PCI Express Card RS-232C 4ch
  • CE marking
  • VCCI

Options

Cable

Item Item Name
PCE44/9P4S Divider Shield cable, D-SUB44pin -> 9pin x4 (0.25m) for Serial I/O Card
RSC-9F Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25M/9F Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-9M/F Straight Cable, RS-232C D-SUB9P(1.8m)

Other Accessories

Item Item Name
CN5-D44M 44pin D-SUB (Male) Connector Five-piece Set

Software Development Kit

Item Item Name
API-SIO(98/PC) Serial Communication Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
