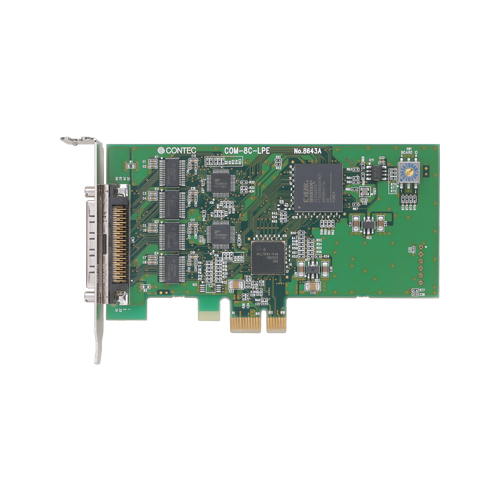

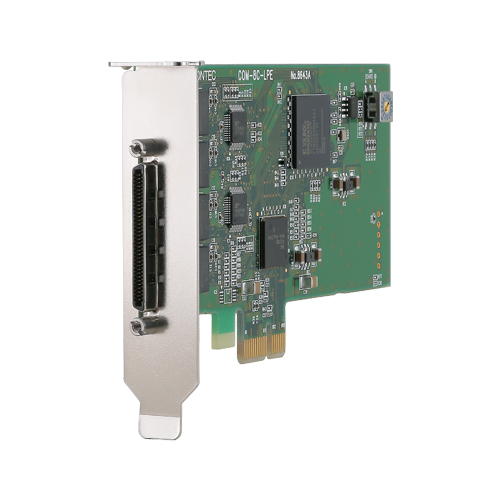

COM-8C-LPE Serial Communication Low Profile PCI Express Card RS-232C 8ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Max. 921,600bps RS-232C Serial Communication
  • Possibly used as Windows, Linux-standard COM ports using the bundled driver library
  • Max. 16 boards can be installed as configured in the range COM1-COM256.
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
  • Support for Low Profile size slot / standard size slot (bundled with bracket)
  • The control line for RS-232C can be controlled and monitored by software.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
COM-8C-LPE Serial Communication Low Profile PCI Express Card RS-232C 8ch
  • CE marking

Options

Cable

Item Item Name

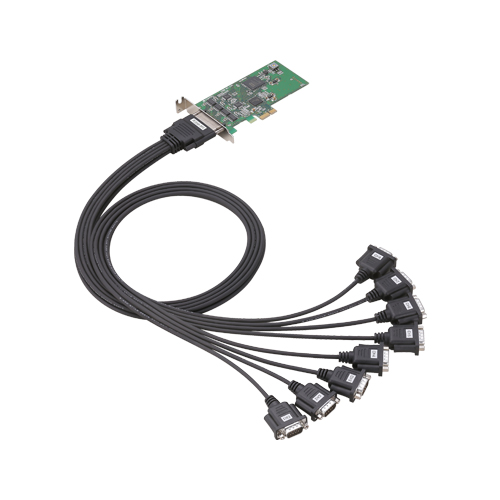

PCE68-9PS Connection Conversion Cable for RS-232C (68Pin→9Pin×8)

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
