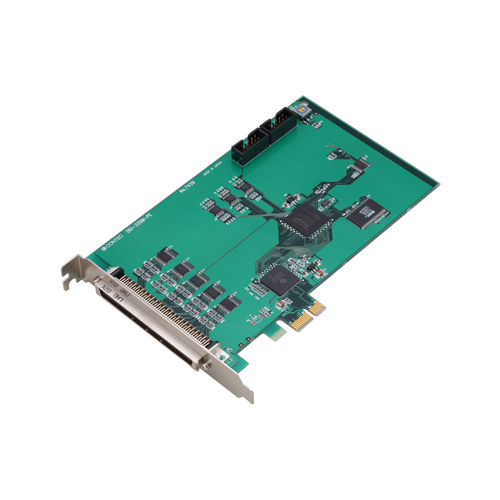

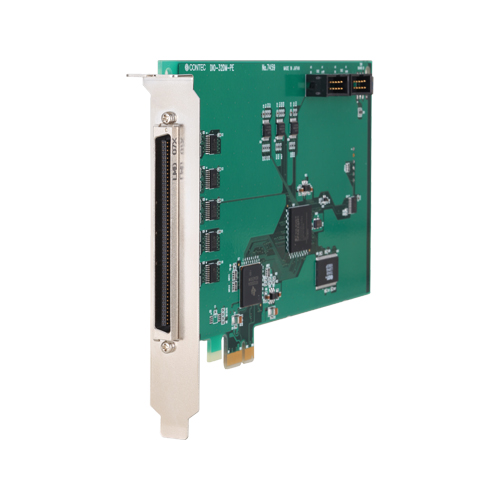

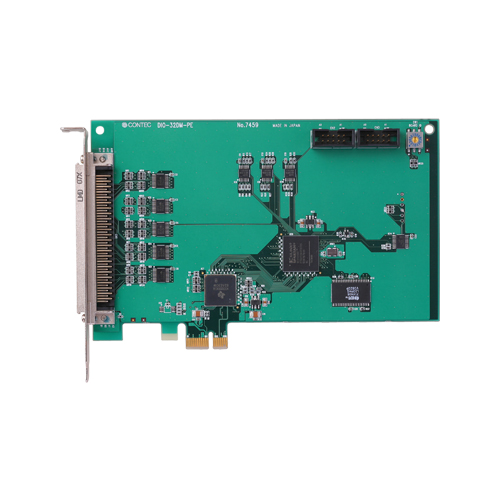

DIO-32DM-PE Digital I/O PCI Express card bi-directional 32ch (bus master transfer non-isolated 3.3VDC-LVTTL)

  • Discontinued
  • Standard Warranty3 yrs
  • End of Repair Service: 2020/01/30

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • 32channels of unisolated LVTTL level I/O (32 input channels / each 16channels for I/O / 32 output channels are selected.)
  • Sampling and generating with transfer rate at 20MHz maximum
  • A synchronization control connector is provided for synchronized control of multiple cards.
  • You can use Max. 4 input signals as interrupt request signals at the time of using the general-purpose I/O.
  • Windows/Linux compatible driver libraries are attached.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
Digital I/O PCI Express card bi-directional 32ch (bus master transfer non-isolated 3.3VDC-LVTTL)
DIO-32DM2-PE
The connector and the connector-pin definitions are compatible. Please refer the manual for other specification differences.

Ordering Information

Model Description / Certification
DIO-32DM-PE Digital I/O PCI Express card bi-directional 32ch (bus master transfer non-isolated 3.3VDC-LVTTL)
  • VCCI

Options

Cable

Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

Item Item Name
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Software Development Kit

Item Item Name
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
