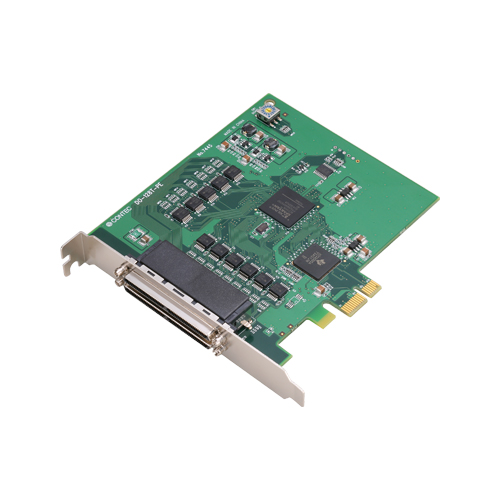

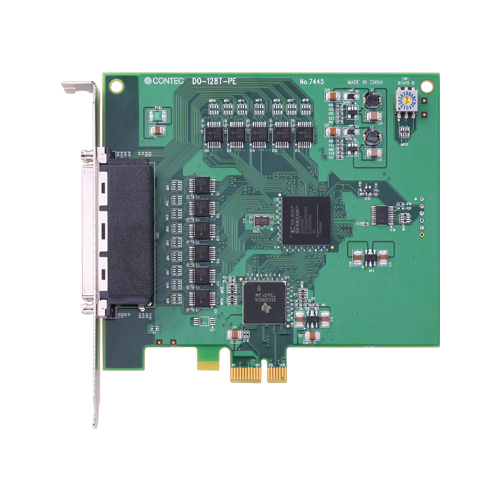

DO-128T-PE Digital output PCI Express card 128ch (non-isolated 5VDC-TTL)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a PCI Express bus-compliant interface card used to provide a digital output function on a PC. It features 128 unisolated open-collector outputs. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries. You can develop a high application in a short time if You use collection of ActiveX components ACX-PAC(W32) for option software.

• Unisolated open-collector output

  • It has the 128ch of unisolated open-collector output whose response speed is 200nsec. The output rating is max. 30VDC, 40mA per ch.
• Windows/Linux compatible driver libraries are attached.

  • Using the attached driver library API-PAC(W32) makes it possible to create applications of Window/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
• Functions and connectors are compatible with PCI compatible card DO-128T2-PCI

  • The functions same with PCI compatible card DO-128T2-PCI are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
• LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

  • Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.
