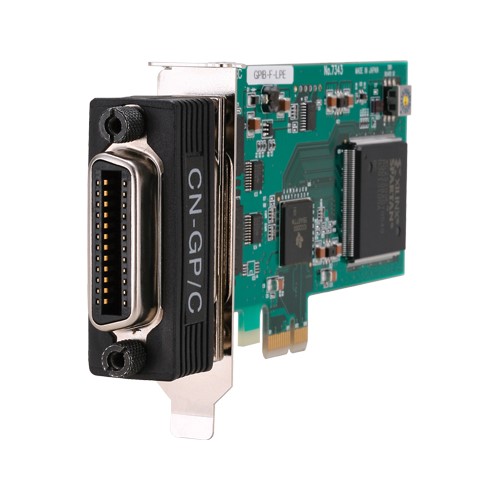

GPIB-FL-LPE High-speed GPIB Interface Board(Low Profile Size) for PCI Express

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Complies with the IEEE-488.2 standard
  • Data transfer speed 1.5Mbyte/sec max.
  • Supports bus master operation
  • Internal 2Kbyte FIFO buffers for send and receive
  • Built-in SPAS event function
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is an interface board of PCI bus conformity equipped with Bus master transfor in accordance with IEEE - 488.1 and IEEE - 488.2. It can control communication of various machinery having GPIB interface or read data of GPIB bus line with a PC. GPIB communication driver (API-PAC(W32)) for Windows version GPIB communication, LabVIEW Attachment. Using a collection of ActiveX components for measurement system development sold separately[ACX-PAC(W32)], you can more easily develop a higher-performance application in a short term.

  • Complies with the IEEE-488.2 standard
    • As the board complies with the IEEE-488.2 standard, you can control any external device that supports this standard.
  • Data transfer speed 1.5Mbyte/sec max.
    • The maximum data transfer speed for communications is 1.5Mbyte/sec.
  • Supports bus master operation
    • The bus master data transfer function enables large quantities of data to be transferred between the board and PC without loading the CPU.
  • Internal 2Kbyte FIFO buffers for send and receive
    • The board has separate 2Kbyte FIFO buffers for sending and receiving data, allowing both small and large volumes of data to be transferred at high speed. Interface messages also use a FIFO to enable high-speed transmission.
  • Built-in SPAS event function
    • In addition to the functions of the earlier GPIB controller (µPD7210), the board also supports the SPAS event generated when a serial poll occurs. This gives you a high level of flexibility in constructing your system.
