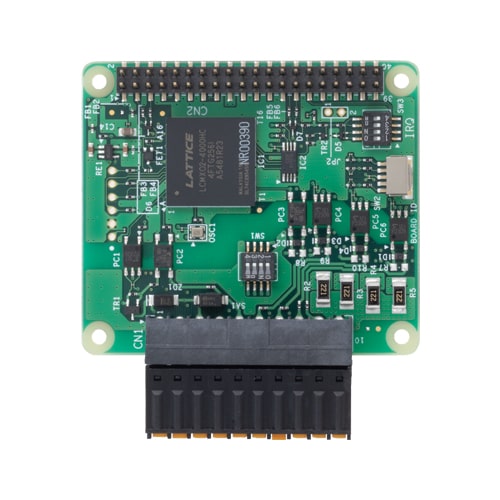

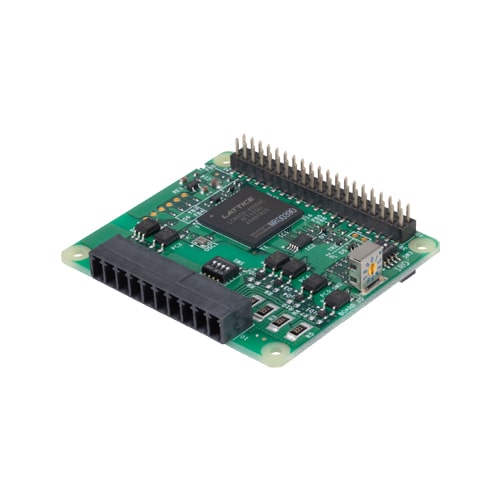

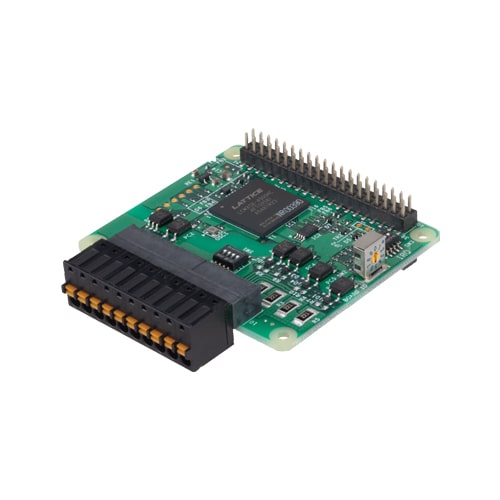

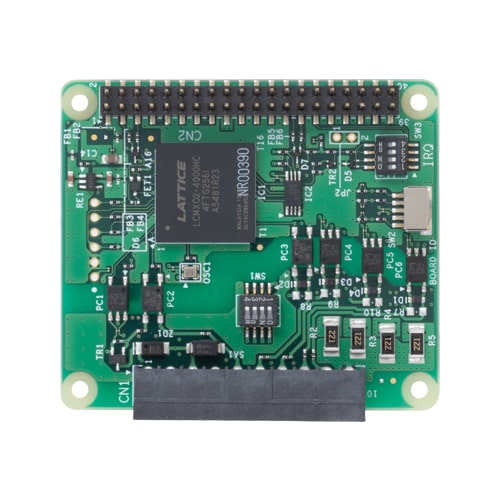

CPI-CNT-3201I Counter Input Raspberry Pi card 32bit Up-Down Counter 1ch Single-Phase/2-Phase (A/B/Z)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Push-type terminal block for easy wiring
  • Stacked connection of up to 8 cards
  • API compatible with PC expansion cards and Python-compatible API
  • 32-bit up-and-down counter
  • Opto-coupler bus isolation
  • Adaptable to a temperature range between -20 to 60°C
  • *
    For details about an extended warranty, please contact us.

Overview / Features

This product is an expansion card that adds an counts input interface to the Raspberry Pi. It has one channel of 32-bit up/down counters, allowing external devices such as a rotary encoder and a linear scale to be connected. The pulse signal interface is an opto-coupler isolated input.

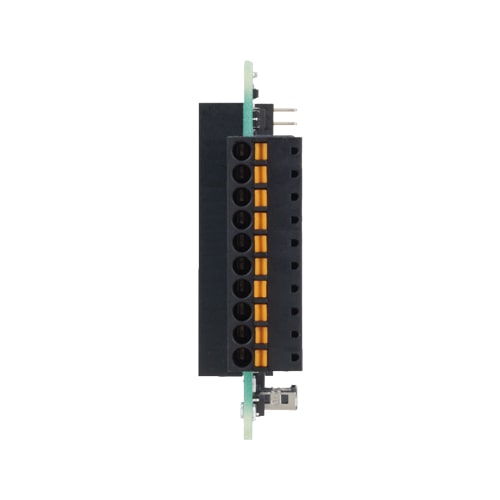

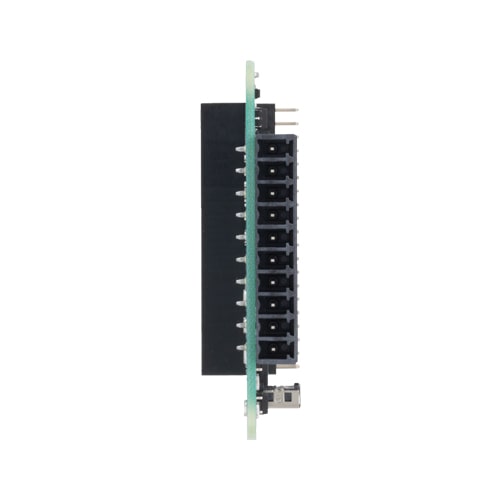

  • Push-type terminal block for easy wiring
    • The CPI Series includes a push-type terminal block for convenient, simple connection and disconnection of wired HATs without the need for tools or crimping terminals.
  • Stacked connection of up to 8 cards
    • CONTEC has expanded HAT specifications to include address ID configurability, making it possible to connect up to eight stacked cards. * Connection to HATs from other manufacturers is also possible. * Use a CONTEC RAS function expansion card (CPI-RAS) for stable power supply with stacked connections.
  • API compatible with PC expansion cards and Python-compatible API
    • Take advantage of API compatibility with CONTEC PCI Express, PCI, USB, and Ethernet-type measurement control devices. Development assets can be reused across multiple platforms. Linux driver (API-TOOL for Linux) can be downloaded for free from the company’s website along with sample Python and GCC programs, allowing users to begin programming right away.
  • 32-bit up-and-down counter
    • The 32 bit up-and-down counter could have four channels and up to 500kHz maximum speed pulse input. Moreover, it can count 2-phase signals and mono-phase signals such as a rotary encoder and a linear scale.
  • Opto-coupler bus isolation
    • As the GPIO 40pin connector on Raspberry Pi is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
  • Adaptable to a temperature range between -20 to 60°C
    • The product is capable of operating in the temperature between -20 to 60°C. It can be installed in the various environments.
