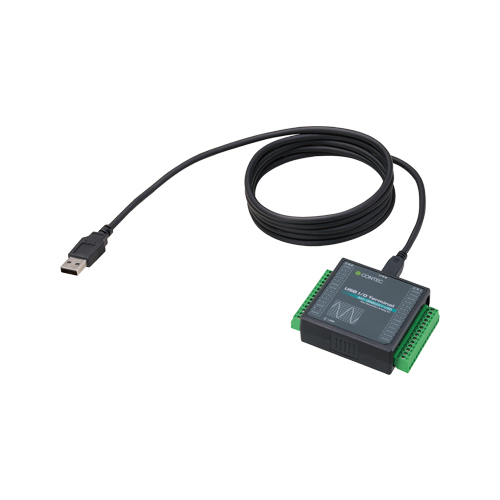

AIO-160802GY-USB Analog I/O USB I/O Unit / 8ch AI(16bit 250ks/s) / 2ch AO - Y Series

Standard Warranty1 yr
Extended WarrantyAvailable

Input 4μsec/ch, 8ch, output 10μsec, 2ch, 16bit resolution
Compatible to USB1.1/USB2.0 and not necessary to power this product externally as the bus power is used.
Equipped with the buffer memory which can be used in either FIFO or ring format
Windows compatible driver libraries are provided.
Supported to the data logger software [C-LOGGER] (Analog input only).
Sampling can be driven by a clock or by various triggers

*
For details about an extended warranty, please contact us

Ordering Information

Ordering Information

Model	Description	Certification
AIO-160802GY-USB	Analog I/O USB I/O Unit / 8ch AI(16bit 250ks/s) / 2ch AO - Y Series

Options

Device Drivers

Item	Item Name
API-AIO(LNX)	Analog I/O Driver for Linux
API-AIO(WDM)	Windows version High-efficiency Analog I/O Driver

Development Support Tools

Item	Item Name
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library

Applications

Item	Item Name
C-LOGGER	Data Logger Software for Windows
C-WaveformGenerator	Waveform Generator for Windows

Other Accessories

Item	Item Name
BRK-USB-Y	Bracket for USB I/O Terminal products
CN6-Y14	14 pin Terminal connector(screw type) 6/set
